by

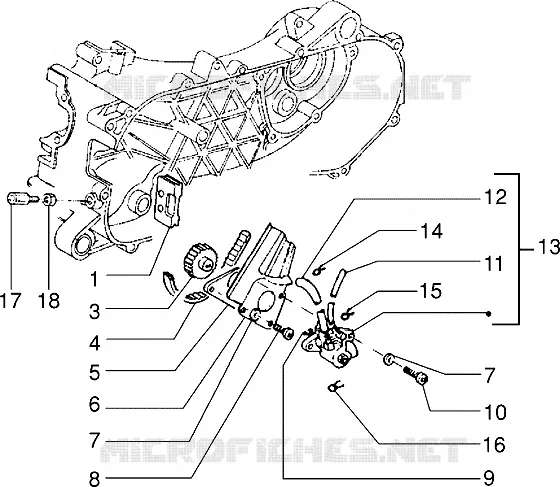

Oil pump
1
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
Fairlead
287021
$2,08 Unit Price incl. VAT
2
Nut M6
020106
$0,08 Unit Price incl. VAT
3
Oil pump gear, cpl.
289262
$0,05 Unit Price incl. VAT
3
Oil pump gear
289191
$4,29 Unit Price incl. VAT
4
Toothed belt
286162
$4,38 Unit Price incl. VAT
5
plate
286163
$2,19 Unit Price incl. VAT
6
Guard
480482
Not Available
7
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
8
screw M5x21
015856
$0,16 Unit Price incl. VAT
9
Spring clamp
104296
$0,38 Unit Price incl. VAT
10
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
11
Oil pipe
286165
$4,82 Unit Price incl. VAT
12
Oil inlet pipe
CM101509
$13,47 Unit Price incl. VAT
13
Oil pump
82605R
$91,57 Unit Price incl. VAT
14
Hose clamp
486149
$0,09 Unit Price incl. VAT
15
Hose clamp
288327
$2,95 Unit Price incl. VAT
16
Hose clamp
289309
$1,45 Unit Price incl. VAT
17
Adjuster screw
146197
$0,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
