Installation de refroidissement FOR Gilera Piaggio Vespa NRG

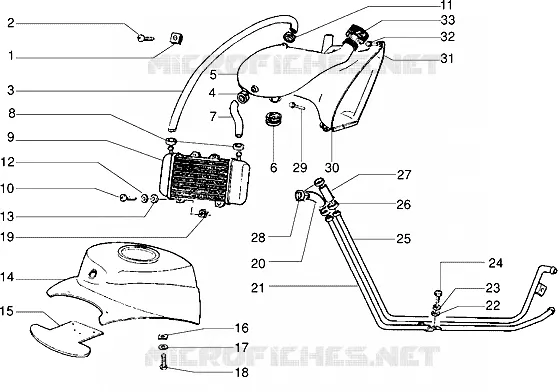

Installation de refroidissement

1

Spring plate

184142

Not Available

2

Screw M4,2x13

259349

$0,17 Unit Price incl. VAT

3

pipe

463890

$2,25 Unit Price incl. VAT

4

Hose clamp

CM001905

$1,38 Unit Price incl. VAT

5

Tank

574441

Not Available

6

Upper rubber

351782

$0,34 Unit Price incl. VAT

7

pipe

463876

$1,22 Unit Price incl. VAT

8

Hose clamp

259479

Not Available

9

Water cooler

575219

$30,89 Unit Price incl. VAT

10

screw M6x16

031088

$0,17 Unit Price incl. VAT

11

Hose clamp

CM001903

$0,84 Unit Price incl. VAT

12

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

13

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

14

Guard

463829

Not Available

15

Guard

463986

$2,97 Unit Price incl. VAT

16

Spring plate M6

254485

$0,34 Unit Price incl. VAT

17

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

18

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

19

Spring plate M6

254485

$0,34 Unit Price incl. VAT

20

pipe

463877

Not Available

21

pipe

463878

Not Available

22

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

23

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

24

screw M6x16

031088

$0,17 Unit Price incl. VAT

25

pipe

463869

Not Available

26

Hose clamp

CM001905

$1,38 Unit Price incl. VAT

27

pipe

463875

Not Available

28

Hose clamp

CM001905

$1,38 Unit Price incl. VAT

29

Self tapping screw L=20 mm

267958

$0,25 Unit Price incl. VAT

30

Guard

463833

Not Available

31

Guard

463853

$9,26 Unit Price incl. VAT

32

screw TBC 3,6x12

018603

$2,95 Unit Price incl. VAT

33

Cover

561991

$20,20 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
