Fork/steering tube - Steering bearing unit FOR Vespa GTV 310 E5+ ABS ASR FROM 2025

Rear suspension - Shock absorber/s

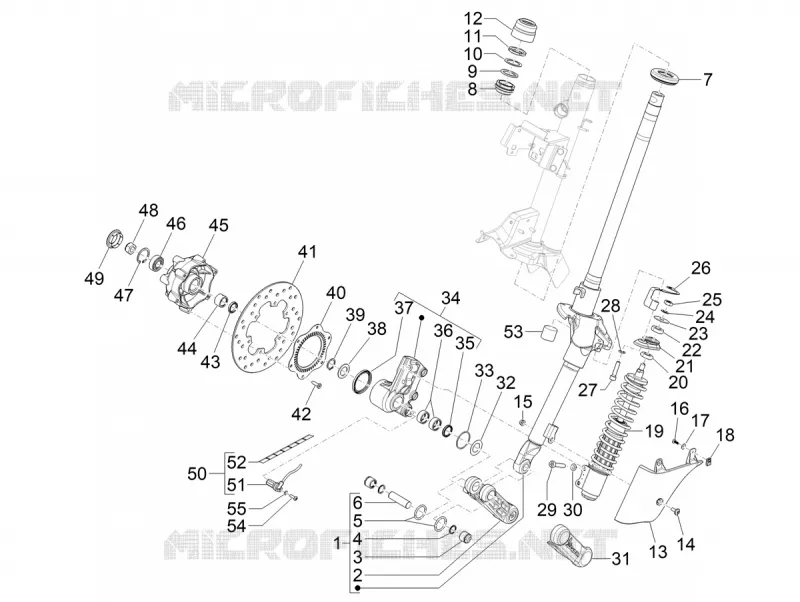

Fork/steering tube - Steering bearing unit

1

Tube de direction avec bras

1C0072595

$465,70 Unit Price incl. VAT

2

Bras de suspension avant

1C0016555

$39,24 Unit Price incl. VAT

3

Roller cage

198513

$5,97 Unit Price incl. VAT

4

Gasket ring

119219

$0,67 Unit Price incl. VAT

5

Gasket

006731

$0,34 Unit Price incl. VAT

6

Piston pin

177451

$3,03 Unit Price incl. VAT

7

Lower steering bearing

65007545

$25,55 Unit Price incl. VAT

8

Upper thrust ring

65069345

$19,08 Unit Price incl. VAT

9

Washer of the steering

0037514

$1,51 Unit Price incl. VAT

10

Spring

482620

$8,33 Unit Price incl. VAT

11

Steering tube ring nut

0111094

$2,60 Unit Price incl. VAT

12

Capuchon de protection des rondelles de butée

1B004779

$1,31 Unit Price incl. VAT

13

Front suspension cover

1C001153

$24,90 Unit Price incl. VAT

14

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

15

Self locking nut M6

241936

$0,08 Unit Price incl. VAT

16

Screw M4,2x13

259349

$0,17 Unit Price incl. VAT

17

Washer

012528

$0,34 Unit Price incl. VAT

18

Spring plate

CM017410

$0,34 Unit Price incl. VAT

19

Amortisseur avant complet

1C004639

$253,38 Unit Price incl. VAT

20

Pad

174874

$2,36 Unit Price incl. VAT

21

Console de fixation amortisseur

1C007400

$14,02 Unit Price incl. VAT

22

Pad

174085

$1,18 Unit Price incl. VAT

23

Washer

174088

$0,84 Unit Price incl. VAT

24

Washer

012535

$0,08 Unit Price incl. VAT

25

Nut

021210

$0,16 Unit Price incl. VAT

26

Bride de support du tuyau de frein

1C001228

$12,30 Unit Price incl. VAT

27

Cylindrical screw with hexagon socket M8x35

1C001492

$1,05 Unit Price incl. VAT

28

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

29

Vis M8x40

1C006164

$1,26 Unit Price incl. VAT

30

Spring washer

709047

$0,08 Unit Price incl. VAT

31

Protection de bras de suspension avant

1B011333000XNM

$24,75 Unit Price incl. VAT

32

Washer

177445

$0,34 Unit Price incl. VAT

33

O-ring

177408

$0,08 Unit Price incl. VAT

34

Pin and shock absorber support

1C0025295

$79,16 Unit Price incl. VAT

35

Gasket ring

1C001969

$4,04 Unit Price incl. VAT

36

Cage à rouleau

1C006892

$3,36 Unit Price incl. VAT

37

Ring

177494

$1,85 Unit Price incl. VAT

38

Washer

177414

$0,75 Unit Price incl. VAT

39

Circlip

006422

$0,16 Unit Price incl. VAT

40

Front ABS tone wheel

669115

$9,33 Unit Price incl. VAT

41

Brake disc

56484R

$35,10 Unit Price incl. VAT

42

Screw

5A000656

$0,67 Unit Price incl. VAT

43

Gasket ring

177443

$1,77 Unit Price incl. VAT

44

Roller cage

177442

$4,04 Unit Price incl. VAT

45

Rear wheel hub with U.P.

650907

$46,15 Unit Price incl. VAT

46

Bearing

177610

$8,41 Unit Price incl. VAT

47

Snap ring

006635

$0,25 Unit Price incl. VAT

48

Écrou auto-freiné

668001

$1,11 Unit Price incl. VAT

49

Bouchon essieu de roue

1C007451

$7,73 Unit Price incl. VAT

50

Full active ABS sensor

1D003747

$47,92 Unit Price incl. VAT

51

Capteur ABS

1D003350

$32,36 Unit Price incl. VAT

52

Protection à spirale

642980

$19,64 Unit Price incl. VAT

53

Cover

601026

$0,84 Unit Price incl. VAT

54

Covex head screw with torx

1C005394

$0,42 Unit Price incl. VAT

55

Flat washer

669282

$1,43 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
