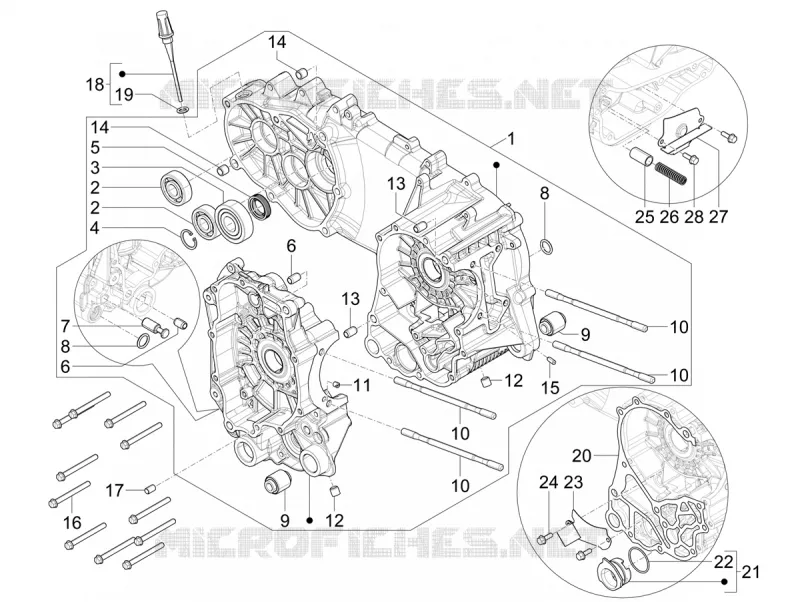

Crankcase FOR Vespa GTV 310 E5+ ABS ASR FROM 2025

Crankcase

1

Carter complet 2e cat.

1A02789502

$863,43 Unit Price incl. VAT

1

Carter complet 1e cat.

1A02789501

$863,43 Unit Price incl. VAT

2

Radial ball bearing 15x42x13

83018R

$4,46 Unit Price incl. VAT

3

Bearing D20x52x15

82660R

$21,87 Unit Price incl. VAT

4

Circlip 25x26.9x1.2

000674

Not Available

5

Gasket ring 20-32-7

82878R

$10,25 Unit Price incl. VAT

6

Pin 6,5x9,5x15

239388

Not Available

7

Springs fixing pin

483785

$5,45 Unit Price incl. VAT

8

O-ring

273754

$0,16 Unit Price incl. VAT

9

Silent-block

486081

$6,73 Unit Price incl. VAT

10

Prisionnier culasse

1A024665

$9,84 Unit Price incl. VAT

11

Nozzle D 1.1

844582

$0,05 Unit Price incl. VAT

12

Cheville à expansion

B015230

$3,53 Unit Price incl. VAT

13

Pin 6,5x9,5x15

239388

Not Available

14

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

15

Nozzle

484034

$6,44 Unit Price incl. VAT

16

Screw w/ flange M6x60

B016425

$1,01 Unit Price incl. VAT

17

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

18

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

19

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

20

Joint semicarter

1A024852

$7,10 Unit Price incl. VAT

21

Filter door insert

845861

$3,82 Unit Price incl. VAT

22

Gasket

431065

$0,42 Unit Price incl. VAT

23

Cloison d'huile supérieure

1A025314

$1,86 Unit Price incl. VAT

24

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

25

Oil pressure valve

829661

$6,44 Unit Price incl. VAT

26

Spring

485655

$1,26 Unit Price incl. VAT

27

Huile cloison

1A025313

$3,07 Unit Price incl. VAT

28

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
