Anti-percolation system FOR Vespa GTS 125 E5+ Classic - Super - Super Sport FROM 2024

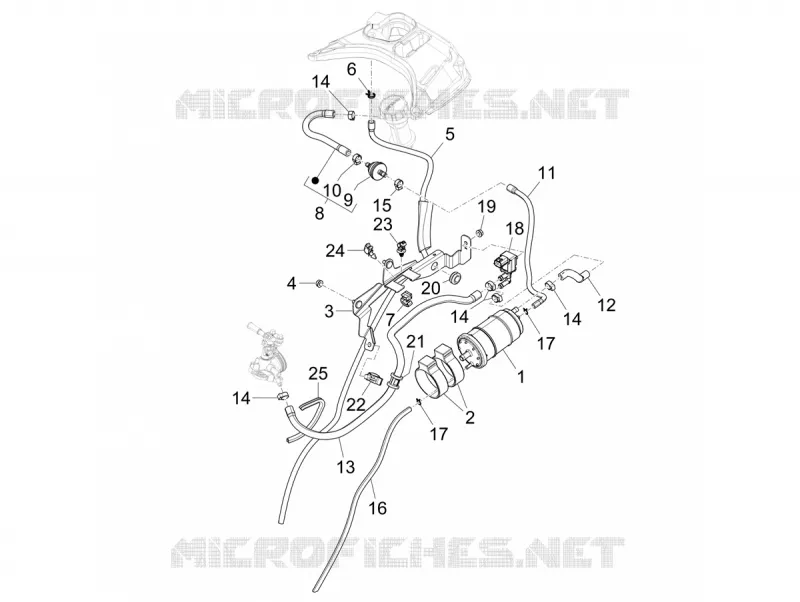

Anti-percolation system

1

Canister

1B003695

$25,22 Unit Price incl. VAT

2

Canister support

1B003721

$3,60 Unit Price incl. VAT

3

Bride d'absorbeur

1B009846

$35,23 Unit Price incl. VAT

4

Self locking nut M6

241936

$0,08 Unit Price incl. VAT

5

Durit d'essence

CM001449

$4,39 Unit Price incl. VAT

6

Hose clamp

CM002905

$0,42 Unit Price incl. VAT

7

Spring

CM013201

$0,40 Unit Price incl. VAT

8

Reniflard complet

1B008392

Not Available

9

Soupape pression

CM292102

$15,89 Unit Price incl. VAT

10

Hose clamp

CM001914

$0,75 Unit Price incl. VAT

11

Tuyau canister

CM283451

$52,53 Unit Price incl. VAT

12

Tube

CM177992

$6,24 Unit Price incl. VAT

13

Sae j30 pipe L=1125 mm

CM177923

$70,25 Unit Price incl. VAT

14

Hose clamp

CM001914

$0,75 Unit Price incl. VAT

15

Hose clamp

CM002905

$0,42 Unit Price incl. VAT

16

Durit d'essence

CM283427

$40,50 Unit Price incl. VAT

17

Hose clamp

CM283701

$0,25 Unit Price incl. VAT

18

Electrovanne air complète

1B008603

$17,66 Unit Price incl. VAT

19

Self locking nut M6

241936

$0,08 Unit Price incl. VAT

20

Fairlead

702195

$4,40 Unit Price incl. VAT

21

Passe-câble

1B001631

$5,36 Unit Price incl. VAT

22

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

23

Wiring clip

1D001143

$0,34 Unit Price incl. VAT

24

Hose clamp

298729

$0,34 Unit Price incl. VAT

25

Edge protection L=100

CM023903

$0,78 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
