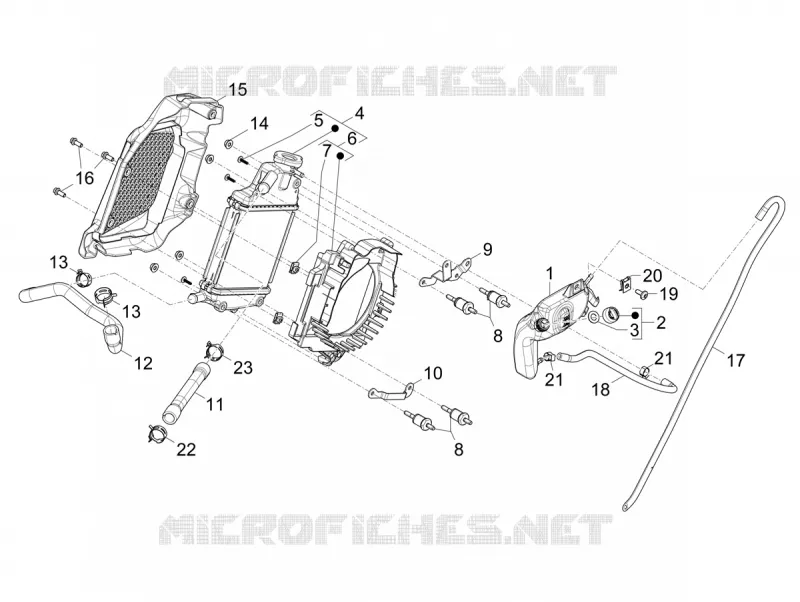

Cooling system FOR Vespa GTS 125 E5+ Classic - Super - Super Sport FROM 2024

Cooling system

1

Réservoir d'expansion

1B006135

Not Available

2

Bouchon

1B010833

Not Available

3

Joint bouchon

1B010829

Not Available

4

Radiateur d'eau

1A017507

$104,96 Unit Price incl. VAT

5

TBCIC Screw

270793

$0,08 Unit Price incl. VAT

6

Air duct

1A007893

$8,70 Unit Price incl. VAT

7

Spring plate

1A003988

$1,81 Unit Price incl. VAT

8

Radiator support spacer

1A021966R

$17,99 Unit Price incl. VAT

9

Radiator upper bracket with I.P.

1A026956

Not Available

10

Radiator lower bracket

1A017430

$9,69 Unit Price incl. VAT

11

Tube pompe radiateur H2O

1A019402

$28,64 Unit Price incl. VAT

12

Water cooler-head tube

1A006075

$4,98 Unit Price incl. VAT

13

Hose clamp

CM226910

$2,86 Unit Price incl. VAT

14

Flanged nut

874558

$0,09 Unit Price incl. VAT

15

Protection du radiateur

1A019945

$11,93 Unit Price incl. VAT

16

Screw w/ flange M6x16

1A006359

$2,20 Unit Price incl. VAT

17

Breather pipe

CM001444

$4,87 Unit Price incl. VAT

18

Cooling tube L=280

CM278701

$1,48 Unit Price incl. VAT

19

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

20

Spring plate M6

254485

$0,34 Unit Price incl. VAT

21

Hose clamp

CM001901

$0,76 Unit Price incl. VAT

22

Hose clamp

CM226911

$3,28 Unit Price incl. VAT

23

Spring clamp 22/12

CM226903

$3,65 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
