Oil pump FOR Vespa GTS 125 E5+ Super Tech FROM 2025

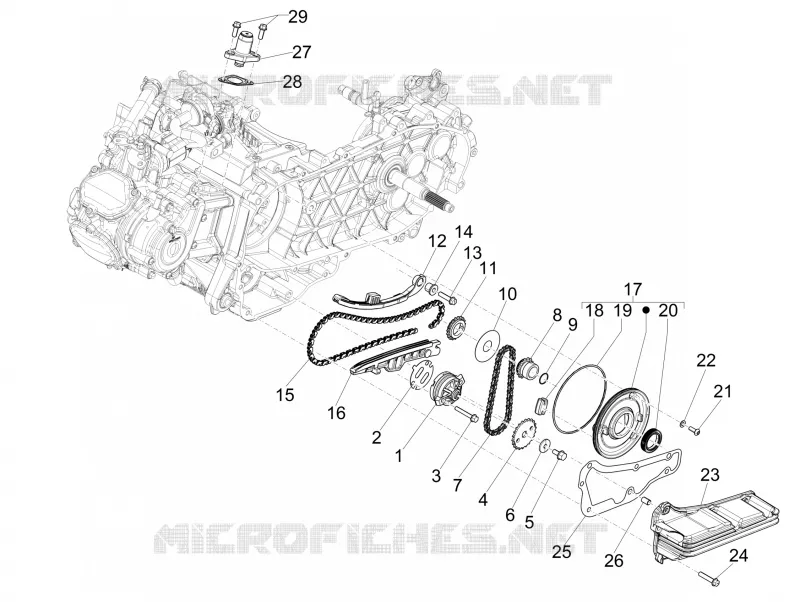

Oil pump

1

Pompe huile complète

B017915

$13,03 Unit Price incl. VAT

2

Oil pump/crankcase gasket

B015460

$0,50 Unit Price incl. VAT

3

Screw w/ flange M5x35

829593

$0,50 Unit Price incl. VAT

4

Oil pump gear

287913

$6,47 Unit Price incl. VAT

5

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

6

Belleville spring

B015991

$0,34 Unit Price incl. VAT

7

Oil pump chain

B015459

$4,54 Unit Price incl. VAT

8

Oil pump control pinion

82783R

$7,99 Unit Price incl. VAT

9

O-Ring seal ring

B015451

$0,50 Unit Price incl. VAT

10

Rondelle joint-spi

1A018661

$0,50 Unit Price incl. VAT

11

Timing chain pinion

82782R

$7,06 Unit Price incl. VAT

12

Tge tendeur de chaîne

1A019017

$8,73 Unit Price incl. VAT

13

Screw w/ flange M6x25

1A000350

$2,25 Unit Price incl. VAT

14

Entretoise de tige de tendeur de chaîne

1A021815R

$6,22 Unit Price incl. VAT

15

Chaîne de distribution

1A006278

$14,23 Unit Price incl. VAT

16

Chain tensioner sliding block

1A006294

$8,31 Unit Price incl. VAT

17

Timing system cover

1A0033175

$40,10 Unit Price incl. VAT

18

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

19

O-Ring seal ring

B015449

$4,96 Unit Price incl. VAT

20

Gasket ring 24.35.7

1A005743

$10,42 Unit Price incl. VAT

21

Hex socket screw M5x14

B016455

$0,34 Unit Price incl. VAT

22

Plain washer

487937

$0,09 Unit Price incl. VAT

23

Pan oil

B013437

$22,19 Unit Price incl. VAT

24

Screw w/ flange M6x30

B016792

$0,25 Unit Price incl. VAT

25

Sump gasket

B014152

$2,02 Unit Price incl. VAT

26

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

27

Tendeur de chaîne complet

1A018752

$21,58 Unit Price incl. VAT

28

Cylinder/chain tensioner gasket

B015444

$4,82 Unit Price incl. VAT

29

Screw w/ flange M6x20

1A000351

$0,25 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
