CYLINDER HEAD - VALVES FOR Vespa GTS 125 E5+ Super Tech FROM 2025

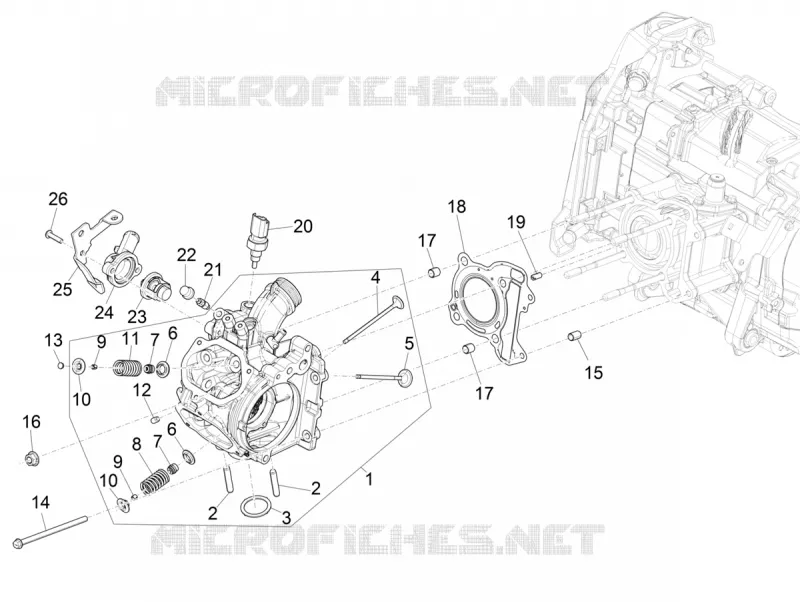

CYLINDER HEAD - VALVES

1

Culasse cylindre complète

1A020730

$314,16 Unit Price incl. VAT

2

Stud bolt M7

435629

$0,67 Unit Price incl. VAT

3

Big end-silencer gasket

1A001528

$1,28 Unit Price incl. VAT

4

Soupape d'échappement

1A012280

$21,35 Unit Price incl. VAT

5

Soupape d'admission

1A016568

$9,20 Unit Price incl. VAT

6

Lower cap

483711

$1,35 Unit Price incl. VAT

7

Bague étanchéité soupape

1A013679

$4,35 Unit Price incl. VAT

8

Valve spring

1A001651

$2,20 Unit Price incl. VAT

9

Half-cone

B015484

$0,92 Unit Price incl. VAT

10

Upper cap

B013833

$1,26 Unit Price incl. VAT

11

Valve return spring

1A014782

$3,08 Unit Price incl. VAT

12

Plug M6x10

842360

$0,75 Unit Price incl. VAT

13

Valve terminal

1A016567

$34,99 Unit Price incl. VAT

14

screw M6x112,5

B016807

$1,26 Unit Price incl. VAT

15

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

16

Nut M8x1,25

411296

$0,50 Unit Price incl. VAT

17

Locating dowel

435571

$0,50 Unit Price incl. VAT

18

Joint tête cylindre

1A014364

$3,00 Unit Price incl. VAT

19

Calibrated nozzle

1A001364

$1,54 Unit Price incl. VAT

20

Bulbe de température d’eau

1A023021R

$47,85 Unit Price incl. VAT

21

Bleed screw

430045

$2,40 Unit Price incl. VAT

22

Bleed valve cap

063435

$0,34 Unit Price incl. VAT

23

Thermostat

82831R5

$32,18 Unit Price incl. VAT

24

Thermostat cover

1A002603

$7,12 Unit Price incl. VAT

25

Plaque support câble

1A018757

Not Available

26

Torx Screw M5x20

1A004456

$2,20 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
