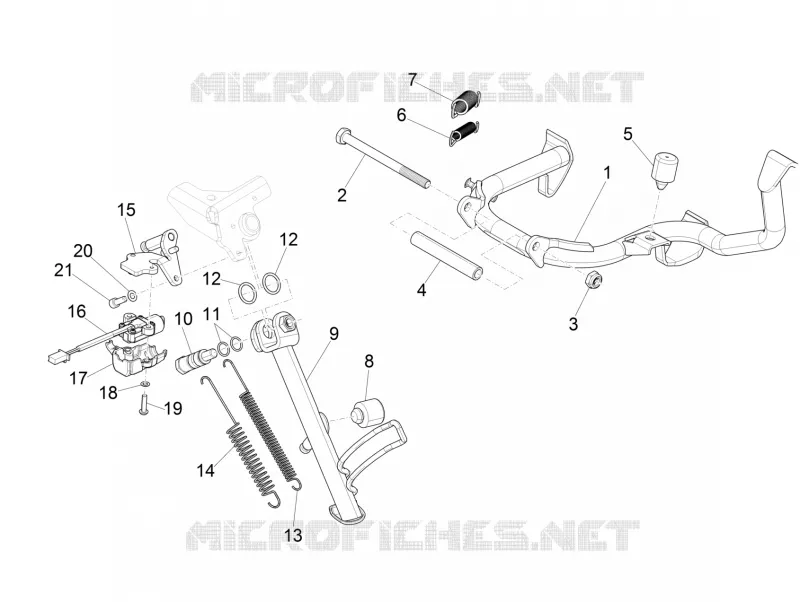

Stand/s FOR Vespa GTS 125 E5+ Classic - Super - Super Sport FROM 2024

Stand/s

1

Béquille centrale complète

1C003575R

Not Available

2

Hex screw M10x130

030115

$1,85 Unit Price incl. VAT

3

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

4

Entretoise

1C004537

$15,97 Unit Price incl. VAT

5

Pad

1C002702

$2,86 Unit Price incl. VAT

6

Internal lateral stand spring

582850

$4,89 Unit Price incl. VAT

7

Lateral stand spring

582851

$4,89 Unit Price incl. VAT

8

Pad

967351

$7,23 Unit Price incl. VAT

9

Béquille latérale avec pièces internes

1C003398

$28,41 Unit Price incl. VAT

10

Axe de béquille

1C007151

$5,93 Unit Price incl. VAT

11

O-ring 12,42x1

434947

$2,99 Unit Price incl. VAT

12

Gasket

191189

$0,17 Unit Price incl. VAT

13

Spring

599561

$4,82 Unit Price incl. VAT

14

Spring

295789

$4,82 Unit Price incl. VAT

15

Support bracket sensor

1C000368

$8,16 Unit Price incl. VAT

16

Stand button

642559

Not Available

17

Guard

1C000518

$3,68 Unit Price incl. VAT

18

Washer

016343

$2,62 Unit Price incl. VAT

19

Torx Screw M5x20

B016808

$0,20 Unit Price incl. VAT

20

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

21

Vis tête cylindrique à six pans creux M6x16

1C003707

$0,38 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
