MAIN WIRING HARNESS for Beverly 400 E5 Deep Black from 2023

MAIN WIRING HARNESS

1

Faisceau de câbles

1D003890

Not Available

2

Mini fuse 5A

CM080904

$1,09 Unit Price incl. VAT

3

Mini fuse 10A

CM080906

$1,09 Unit Price incl. VAT

4

Mini fuse 15A

CM080907

$1,09 Unit Price incl. VAT

5

Mini fuse 7,5A

CM080905

$0,25 Unit Price incl. VAT

6

Fuse

291570

$4,62 Unit Price incl. VAT

7

Manifold bracket

1A000659

$3,17 Unit Price incl. VAT

8

Pigtail for licence plate lamp

1D003712

$48,45 Unit Price incl. VAT

9

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

10

Spring

642552

$0,76 Unit Price incl. VAT

11

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

12

Metallic clamp

642044

$1,01 Unit Price incl. VAT

13

Screw M5x15

873653

$0,92 Unit Price incl. VAT

14

Washer

012528

$0,34 Unit Price incl. VAT

15

Control unit fixing plate

1B007183

$8,35 Unit Price incl. VAT

16

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

17

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

18

Maintenance

584002

$1,77 Unit Price incl. VAT

19

Plugs spring

1D000129

$1,42 Unit Price incl. VAT

20

Bracket for fixing electrical components

1B007831

$8,71 Unit Price incl. VAT

21

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

22

Electrical system support

1B009084

$1,73 Unit Price incl. VAT

23

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

24

Wiring clip

1D001143

$0,34 Unit Price incl. VAT

25

Elastic spring

231590

$0,25 Unit Price incl. VAT

26

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

27

Spring for connector

639560

$0,67 Unit Price incl. VAT

28

Clamp support bracket

1C002519

$8,32 Unit Price incl. VAT

29

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

30

Molletta

B005629

$0,84 Unit Price incl. VAT

31

Non return spring

CM006911

$0,42 Unit Price incl. VAT

32

Capteur de température ambiante

1D003720R

$10,56 Unit Price incl. VAT

33

Hose clamp

667156

$0,92 Unit Price incl. VAT

34

Prise USB

1D003323

$29,70 Unit Price incl. VAT

35

Fairlead

1B001591

$1,56 Unit Price incl. VAT

36

Earth braid

581309

$3,49 Unit Price incl. VAT

37

Tri/lobed hexagonal self-tapping screw

641204

$0,34 Unit Price incl. VAT

38

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

39

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

40

Mass cable

643026

$17,69 Unit Price incl. VAT

41

Non return spring

CM006902

$0,92 Unit Price incl. VAT

42

Pipes/cables retainer spring L=16

CM006907

$1,51 Unit Price incl. VAT

43

Hose clamp

657229

$1,35 Unit Price incl. VAT

44

Hose clamp

667643

$1,18 Unit Price incl. VAT

45

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

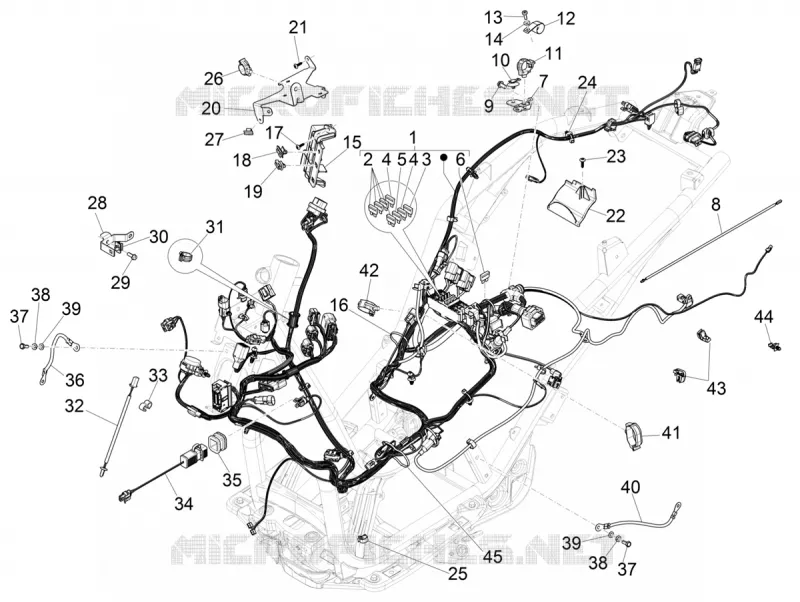

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
