Rear cover - Splash guard for Beverly 400 E5 Deep Black from 2023

Rear cover - Splash guard

1

Fermeture arrière des carénages

1B0070040000C

$49,26 Unit Price incl. VAT

1

Fermeture arrière des carénages

1B007004

$19,94 Unit Price incl. VAT

2

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

3

Lower side closure

1B007058

$40,24 Unit Price incl. VAT

4

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

5

Spring plate M6

254485

$0,34 Unit Price incl. VAT

6

Engine splash guard

657217

$3,70 Unit Price incl. VAT

7

Self tapping screw

297498

$0,08 Unit Price incl. VAT

8

Flat washer 4,2x12x1

013763

$0,08 Unit Price incl. VAT

9

Frame assembly

1B007645

$94,91 Unit Price incl. VAT

10

Lateral cover of license plate support

1B007747

$14,12 Unit Price incl. VAT

11

Vis TEFL M8X45

2B004784

$0,73 Unit Price incl. VAT

12

Spring

140435

$1,01 Unit Price incl. VAT

13

screw

CM179202

$0,25 Unit Price incl. VAT

14

Spring plate M6

254485

$0,34 Unit Price incl. VAT

15

Central cover of license plate support

1B007106

$13,89 Unit Price incl. VAT

16

Support éclairage plaque

1B007734

$4,24 Unit Price incl. VAT

17

Fermeture de support d'éclairage de plaque

1B007733

$4,24 Unit Price incl. VAT

18

Plug screw

268596

$0,08 Unit Price incl. VAT

19

screw

CM179202

$0,25 Unit Price incl. VAT

20

Self-tap screw

CM178604

$0,08 Unit Price incl. VAT

21

Expansion plug

157716

$0,08 Unit Price incl. VAT

22

Collier

1B008865

$1,23 Unit Price incl. VAT

23

Rear retroreflector

58233R5

$2,60 Unit Price incl. VAT

24

Number plate holder

1B004123

$6,02 Unit Price incl. VAT

25

Reflector

294519

$5,88 Unit Price incl. VAT

26

Spring plate

181351

$0,17 Unit Price incl. VAT

27

Screw M4x12

015996

$0,08 Unit Price incl. VAT

28

Scheibe

959263

$0,67 Unit Price incl. VAT

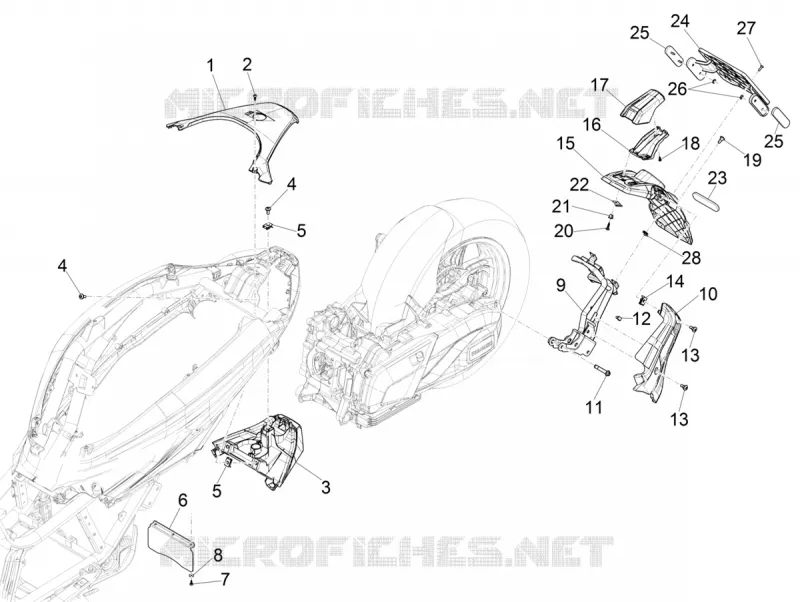

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
