Control pedals - Levers for GILERA PIAGGIO VESPA MP3 MAXI 530 HPE E5+ Exclusive from 2024

Control pedals - Levers

1

Maître-cylindre de frein hydraulique

CM082904

$171,83 Unit Price incl. VAT

2

Vis hexagonale M6x25

1C004660

$26,63 Unit Price incl. VAT

3

Bride du support de la pompe

1C007142

$33,08 Unit Price incl. VAT

4

Cylindrical screw with hexagon socket M8x25

1C003712

$0,50 Unit Price incl. VAT

5

Spring washer

709047

$0,08 Unit Price incl. VAT

6

Pédale de frein

1C006458

$53,38 Unit Price incl. VAT

7

Bush

650636

$3,65 Unit Price incl. VAT

8

Flat washer

178790

$0,51 Unit Price incl. VAT

9

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

10

Goupille

1C004752

$0,66 Unit Price incl. VAT

11

Spring

650670

$1,54 Unit Price incl. VAT

12

Pédale en caoutch.

1C006273

$22,95 Unit Price incl. VAT

13

Torx head cylinder head screw M6

1C006397

$0,84 Unit Price incl. VAT

14

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

15

Protection pédale frein

1B006304

$3,56 Unit Price incl. VAT

16

Soufflet

1B009619

$12,36 Unit Price incl. VAT

17

Left stop button support bracket

1C006387

$7,40 Unit Price incl. VAT

18

Screw M4x10

1C006342

$0,76 Unit Price incl. VAT

19

Washer 4,3x8x0,5

003054

$0,08 Unit Price incl. VAT

20

Bouton stop

1D003842

$19,61 Unit Price incl. VAT

21

Screw M3x10

1C006328

$0,67 Unit Price incl. VAT

22

Washer

013836

$0,09 Unit Price incl. VAT

23

Brake oil tank

274598

$9,00 Unit Price incl. VAT

24

Cover

498431

$8,31 Unit Price incl. VAT

25

Self tapping screw D4.2x13

CM178603

$0,16 Unit Price incl. VAT

26

Tuyau de raccord

1C006730

$2,94 Unit Price incl. VAT

27

Hose clamp

CM001912

$3,65 Unit Price incl. VAT

28

Hose clamp

CM001901

$0,76 Unit Price incl. VAT

29

Sheet edge spring

CM013203

$0,67 Unit Price incl. VAT

30

Non return spring l=27

CM006904

$0,25 Unit Price incl. VAT

31

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

32

Pipe pedal pump - Valves

1C006486

$146,10 Unit Price incl. VAT

33

Special screw

1C002059R

$2,02 Unit Price incl. VAT

34

Gasket

127927

$0,25 Unit Price incl. VAT

35

Vis bride

1C001475

$0,22 Unit Price incl. VAT

36

Plain washer

006175

$1,68 Unit Price incl. VAT

37

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

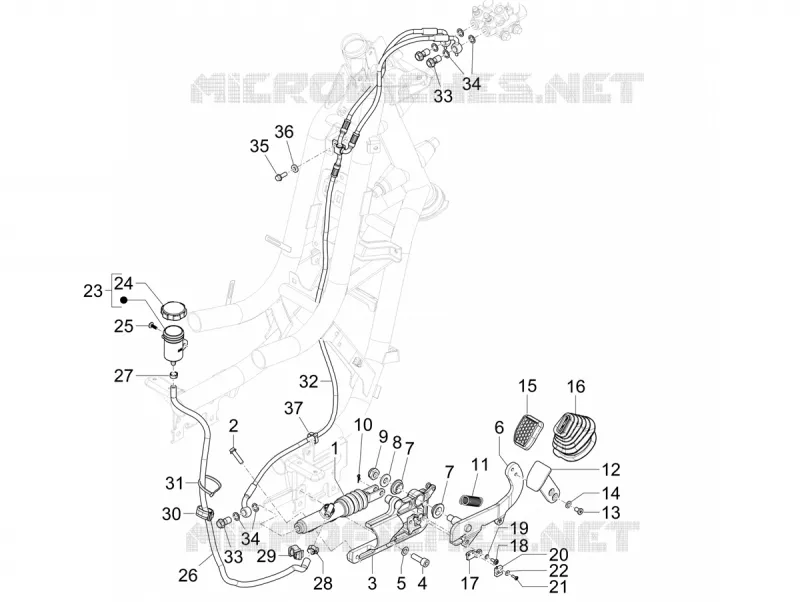

Find the detailed Control pedals - Levers GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
