Fork's components (Mingxing) for GILERA PIAGGIO VESPA MP3 MAXI 530 HPE E5+ Exclusive from 2024

CENTRAL COVER - FOOTRESTS

Fork's components (Mingxing)

1

Tube de direction complet D

1C0063395

$294,85 Unit Price incl. VAT

2

Gasket ring

119219

$0,67 Unit Price incl. VAT

3

Gasket

006731

$0,34 Unit Price incl. VAT

4

Roller cage

198513

$5,97 Unit Price incl. VAT

5

Pin and shock absorber support DX

2B0006105

$79,25 Unit Price incl. VAT

6

Gasket ring

1C001969

$4,04 Unit Price incl. VAT

7

Cage à rouleau

1C006892

$3,36 Unit Price incl. VAT

8

Ring

177494

$1,85 Unit Price incl. VAT

9

Complete pin

649683

$18,14 Unit Price incl. VAT

10

Nut M8x6,5

020108

$0,08 Unit Price incl. VAT

11

Amortisseur avant D complet

1C006308R

$240,59 Unit Price incl. VAT

12

Hex socket screw

1B000324

$31,61 Unit Price incl. VAT

13

Washer

012535

$0,08 Unit Price incl. VAT

14

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

15

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

16

Complete right brake for shock absorber

601907

$186,30 Unit Price incl. VAT

17

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

18

Circlip

006422

$0,16 Unit Price incl. VAT

19

Pad

174085

$1,18 Unit Price incl. VAT

20

Washer

012535

$0,08 Unit Price incl. VAT

21

Pad

174874

$2,36 Unit Price incl. VAT

22

Washer

174088

$0,84 Unit Price incl. VAT

23

Nut

021210

$0,16 Unit Price incl. VAT

24

Bride avec pièces internes

1C005110

$19,71 Unit Price incl. VAT

25

Hex socket screw

826298

$0,66 Unit Price incl. VAT

26

Spring washer

709047

$0,08 Unit Price incl. VAT

27

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

28

Tube de direction complet G

1C0063375

$310,85 Unit Price incl. VAT

29

Roller cage

198513

$5,97 Unit Price incl. VAT

30

Piston pin

177451

$3,03 Unit Price incl. VAT

31

Gasket ring

119219

$0,67 Unit Price incl. VAT

32

Gasket

006731

$0,34 Unit Price incl. VAT

33

LH shock absorber mount and complete calliper

2B0006085

$80,37 Unit Price incl. VAT

34

Gasket ring

1C001969

$4,04 Unit Price incl. VAT

35

Cage à rouleau

1C006892

$3,36 Unit Price incl. VAT

36

Ring

177494

$1,85 Unit Price incl. VAT

37

Complete pin

649683

$18,14 Unit Price incl. VAT

38

Nut M8x6,5

020108

$0,08 Unit Price incl. VAT

39

Amortisseur avant G complet

1C006307R

$240,59 Unit Price incl. VAT

40

Hex socket screw

1B000324

$31,61 Unit Price incl. VAT

41

Washer

012535

$0,08 Unit Price incl. VAT

42

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

43

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

44

Complete left brake for shock absorber

601727

$186,30 Unit Price incl. VAT

45

Spring washer 12x6,4x0,5

006976

$0,08 Unit Price incl. VAT

46

Circlip

006422

$0,16 Unit Price incl. VAT

47

Pad

174085

$1,18 Unit Price incl. VAT

48

Washer

012535

$0,08 Unit Price incl. VAT

49

Pad

174874

$2,36 Unit Price incl. VAT

50

Washer

174088

$0,84 Unit Price incl. VAT

51

Nut

021210

$0,16 Unit Price incl. VAT

52

Bride avec pièces internes

1C005110

$19,71 Unit Price incl. VAT

53

Hex socket screw

826298

$0,66 Unit Price incl. VAT

54

Spring washer

709047

$0,08 Unit Price incl. VAT

55

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

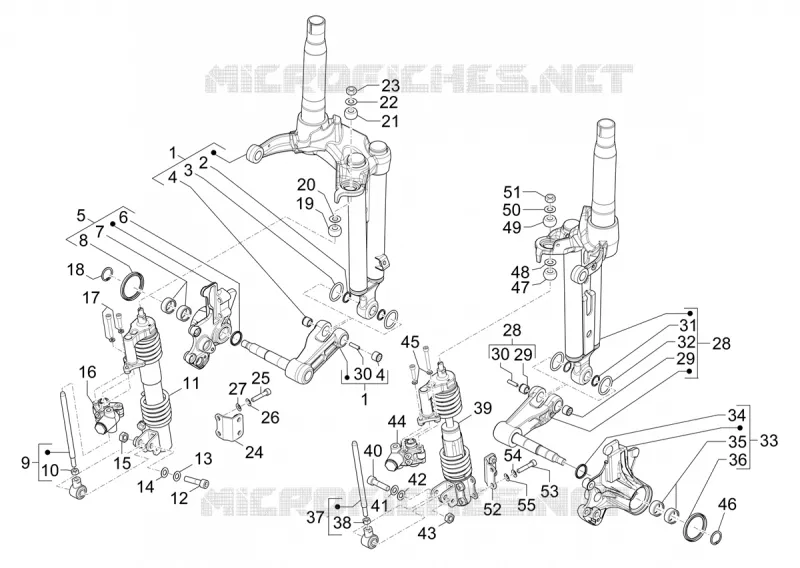

Find the detailed Fork's components (Mingxing) GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
