Cooling system for GILERA PIAGGIO VESPA Beverly ie Tourer E3 from 2009

Cooling system

1

Coolant tank

624598

Not Available

2

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

3

TAPPO SERB.LIQUIDO RAF

623673

$15,97 Unit Price incl. VAT

4

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

5

GUARNIZIONE SERBATOIO ESP.

620737

$4,82 Unit Price incl. VAT

6

GR.RADIATORI ACQUA

57311R

$93,31 Unit Price incl. VAT

6

RADIATORE ACQUA

656528

$77,93 Unit Price incl. VAT

7

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

8

RONDELLA D6,2XD20X1

013092

$0,17 Unit Price incl. VAT

9

DISTANZIALE

273288

$1,01 Unit Price incl. VAT

10

TAMPONE ELASTICO

351782

$0,34 Unit Price incl. VAT

11

Complete electric fan

640389

Not Available

12

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

13

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

14

PIASTRA SUPPORTO ELETTROVENTILATORE

620672

$5,38 Unit Price incl. VAT

15

GUARNIZIONE INIETTORE

168077

$3,65 Unit Price incl. VAT

16

TAPPO M14X1,5

621365

$4,82 Unit Price incl. VAT

17

DADO AUTOFR.TRIBLOC M6 6H

195482

$0,19 Unit Price incl. VAT

18

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

19

TUBO MANDA.RADIATORE/SERB.LIQUIDO

CM007007

$20,60 Unit Price incl. VAT

20

TUBO RITORNO SERB.LIQUIDO/RADIATORE

CM007014

$19,68 Unit Price incl. VAT

21

FASCETTA STRINGITUBO

CM001914

$0,75 Unit Price incl. VAT

22

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

23

Water cooler-pump tube

624650

$31,21 Unit Price incl. VAT

24

FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)

CM001915

$1,03 Unit Price incl. VAT

25

TUBO TESTA-RADIATORE

577914

$24,14 Unit Price incl. VAT

26

Hose clamp

CM001917

$3,65 Unit Price incl. VAT

27

FASCETTA STRINGITUBO (D.30,1 S.0,6 L.7)

CM001922

$3,65 Unit Price incl. VAT

28

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

29

Hose clamp

217280

Not Available

30

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

31

TAMPONE

258904

$0,25 Unit Price incl. VAT

32

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

33

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

34

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

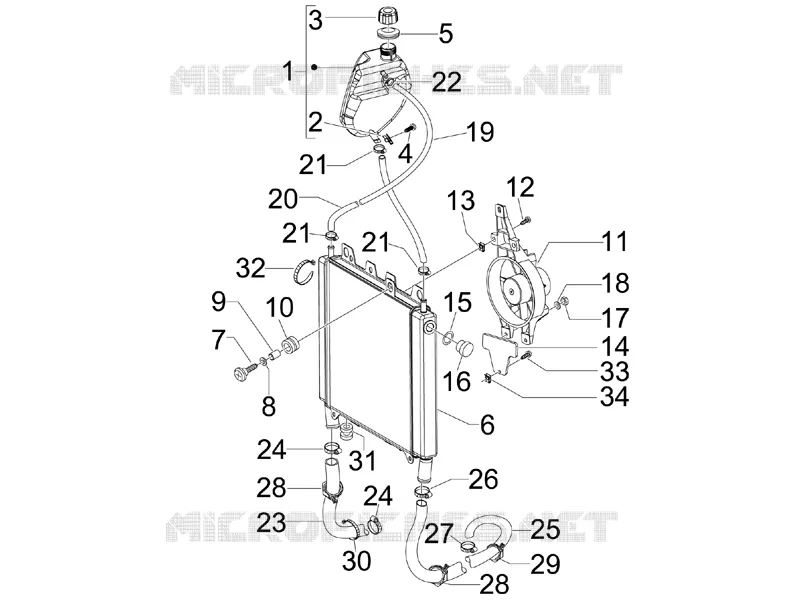

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
