Locks for GILERA PIAGGIO VESPA Beverly ie Tourer E3 from 2009

Locks

1

GRUPPO CILIND. E CHIAVI PER SERRATURA

576825

$137,64 Unit Price incl. VAT

2

SBOZZATO

575810

$55,57 Unit Price incl. VAT

3

ANELLO DI TENUTA

298731

$0,25 Unit Price incl. VAT

4

BLOCCHETTO SERRAT.COMP

577816

$20,60 Unit Price incl. VAT

5

RONDELLA

298594

$1,01 Unit Price incl. VAT

6

MOLLA RITEGNO CILINDRETTO

298838

$0,51 Unit Price incl. VAT

7

Lock body

298581

Not Available

8

MOLLETTA

253937

$0,25 Unit Price incl. VAT

9

Lock lever

576629

$5,38 Unit Price incl. VAT

10

VITE SPECIALE M4

299972

$0,50 Unit Price incl. VAT

11

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

12

PIASTRA

577130

$5,35 Unit Price incl. VAT

13

VITE SPECIALE M4

299972

$0,50 Unit Price incl. VAT

14

LEVA DI RINVIO

577129

$1,43 Unit Price incl. VAT

15

MOLLA

577131

$4,82 Unit Price incl. VAT

16

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

17

MOLLA

620415

$4,82 Unit Price incl. VAT

18

GIUNTO

577128

$1,01 Unit Price incl. VAT

19

Solenoid valve

582990

Not Available

20

VITE A TESTA ESAGONALE

584121

$0,34 Unit Price incl. VAT

21

DADO AUTOFRENANTE M4

577620

$0,08 Unit Price incl. VAT

22

VITE AUTOF. TCCIC D4,2x13 UNI 947

259349

$0,17 Unit Price incl. VAT

23

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

24

SERRATURA SELLA/PORTELLO

CM023704

$24,03 Unit Price incl. VAT

25

VITE METRICA INTAGLIO A CROCE

259348

$2,99 Unit Price incl. VAT

26

TRASM.APERT.EMERGEN.SE

CM012804

$8,51 Unit Price incl. VAT

27

TRASMISSIONE APERT.SEL

CM012808

$8,51 Unit Price incl. VAT

28

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

29

Immobilizer antenna

638534

Not Available

29

Immobilizer antenna

1D001331

Not Available

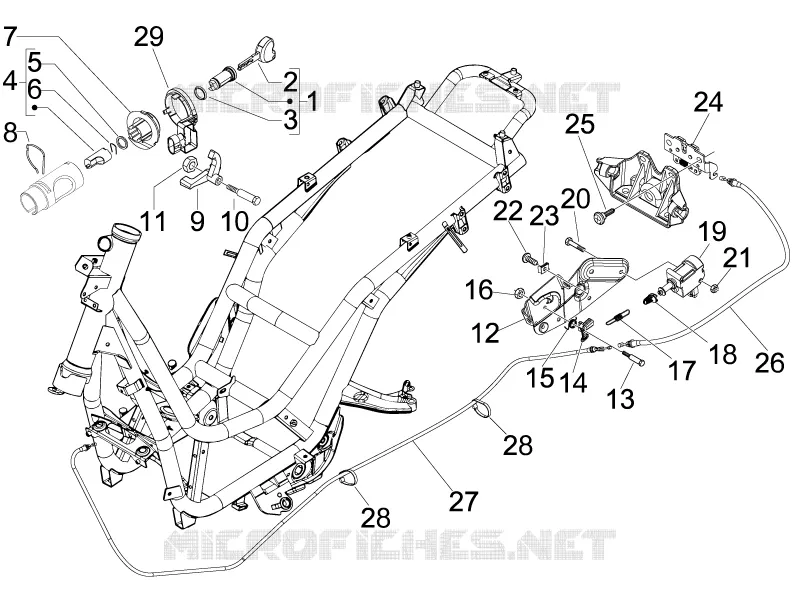

Find the detailed Locks GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
