1
Engine displacement
50
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 50 25 km/h Euro 5
5
Parts Catalog

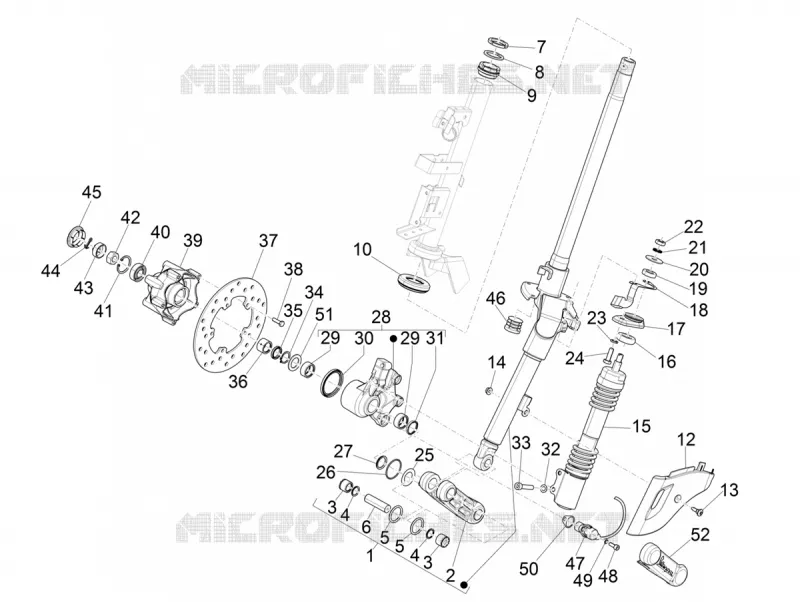

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Inlet manifold
by
Air filter
Fork/steering tube - Steering bearing unit
1
2
3
3
4
4
5
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
Arm complete steering tube
1C0003975
$294,03 Unit Price incl. VAT
2
Left suspension arm
6483975
$109,60 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Piston pin
177451
$3,03 Unit Price incl. VAT
7
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
8
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
9
Upper thrust ring
65069345
$19,08 Unit Price incl. VAT
10
Lower steering bearing
65007545
$25,55 Unit Price incl. VAT
12
Front suspension cover
1C001165
$5,38 Unit Price incl. VAT
13
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
14
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
15
Amortisseur avant
1C004068R
$163,35 Unit Price incl. VAT
16
Pad
174874
$2,36 Unit Price incl. VAT
17
Console de fixation amortisseur
1C004308
$7,99 Unit Price incl. VAT
18
Brake pipe support bracket
1C003390
$7,69 Unit Price incl. VAT
19
Pad
174085
$1,18 Unit Price incl. VAT
20
Washer
174088
$0,84 Unit Price incl. VAT
21
Washer
012535
$0,08 Unit Price incl. VAT
22
Nut
021210
$0,16 Unit Price incl. VAT
23
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
24
screw
031120
$0,42 Unit Price incl. VAT
25
Washer
177445
$0,34 Unit Price incl. VAT
26
O-ring
177408
$0,08 Unit Price incl. VAT
27
Ring
177521
$0,66 Unit Price incl. VAT
28
Pin and shock absorber support
1C0019705
$75,62 Unit Price incl. VAT
29
Drawn cap
177436
$9,18 Unit Price incl. VAT
30
Ring
177494
$1,85 Unit Price incl. VAT
31
Gasket ring
1C001969
$4,04 Unit Price incl. VAT
32
Spring washer
709047
$0,08 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
34
Washer
177414
$0,75 Unit Price incl. VAT
35
Gasket ring
177443
$1,77 Unit Price incl. VAT
36
Roller cage
177442
$4,04 Unit Price incl. VAT
37
Brake disc
56395R
$21,87 Unit Price incl. VAT
38
Hex screw
1C000291
$0,75 Unit Price incl. VAT
39
Front wheel hub
1C000383
$86,99 Unit Price incl. VAT
40
Bearing
649910
$10,14 Unit Price incl. VAT
41
Snap ring
006635
$0,25 Unit Price incl. VAT
42
Nut
021114
$0,51 Unit Price incl. VAT
43
Cap
177609
$2,19 Unit Price incl. VAT
44
Split pin
012789
$0,16 Unit Price incl. VAT
45
Cover
1C000523
$9,49 Unit Price incl. VAT
46
Cover
601026
$0,84 Unit Price incl. VAT
47
Capteur de vitesse
1D000074
Not Available
48
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
49
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
50
Flat washer
668780
$0,76 Unit Price incl. VAT
51
Circlip
006422
$0,16 Unit Price incl. VAT
52
Front suspension arm cover
561433
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
