1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2021
4
Trim
Primavera 150 75° Anniversario Euro 4 / Euro 5
5
Parts Catalog
Tank
6
Parts Diagram
Parts Catalog
Front glove-box - Knee-guard panel
by
EXHAUST

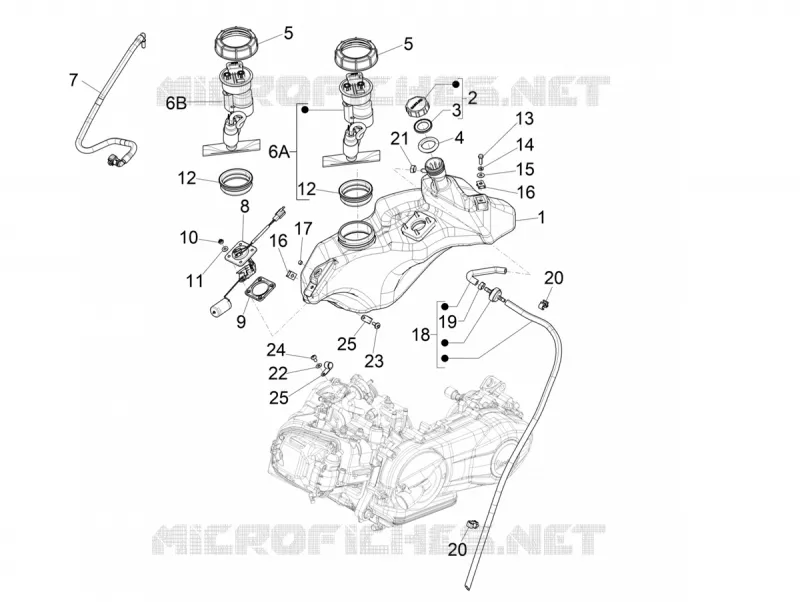

Tank
1
2
3
3
4
5
5
6A
6B
7
7
8
9
10
11
12
12
13
14
15
16
16
17
18
19
20
20
21
22
23
24
25
25
1
Fuel tank
1B005136
Not Available
2
Plug
656022
$8,74 Unit Price incl. VAT
3
Tank cover gasket
656021
$8,66 Unit Price incl. VAT
4
Fuel tank gasket
620737
$4,82 Unit Price incl. VAT
5
Ring nut
576546
$4,71 Unit Price incl. VAT
6A
Pompe à carburant
1D003551R
Not Available
6B
Pompe essence cpl.
1D003557R
Not Available
7
Tuyau de carburant avec raccords
1B008535R
Not Available
7
Fuel pipe complete with joints
1B001000R
$38,43 Unit Price incl. VAT
8
Indicator fuel level
680057
$41,80 Unit Price incl. VAT
9
Gasket
676200
$13,47 Unit Price incl. VAT
10
Nut
709116
$0,59 Unit Price incl. VAT
11
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
12
Gasket
656003
$15,89 Unit Price incl. VAT
13
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
14
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
15
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Spacer
1B000285
$0,50 Unit Price incl. VAT
18
Complete breather pipe
5A0004965
Not Available
19
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
20
Safety valve
1B005112R
$25,22 Unit Price incl. VAT
21
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
22
Washer
012528
$0,34 Unit Price incl. VAT
23
Screw M5x15
873653
$0,92 Unit Price incl. VAT
24
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
25
Hose clamp
1B001026
$0,58 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
