1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2021
4
Trim
Primavera 150 75° Anniversario Euro 4 / Euro 5
5
Parts Catalog
FLYWHEEL COVER - OIL FILTER
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Transmissions

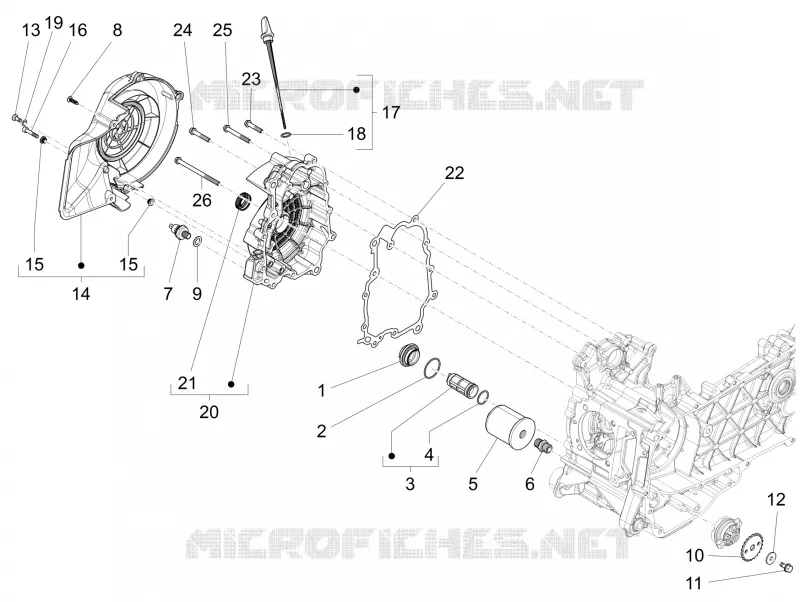

FLYWHEEL COVER - OIL FILTER
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
1
Oil filter plug
B015456
$14,30 Unit Price incl. VAT
2
O-ring 31,47x1,78
B015989
Not Available
3
Intake oil filter
B015454
$2,52 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
5
Oil filter
82635R
$12,36 Unit Price incl. VAT
6
Special screw
B015455
$3,87 Unit Price incl. VAT
7
Minimum oil pressure sensor
1D001138
Not Available
8
Self tapping screw
1A001106
$0,08 Unit Price incl. VAT
9
Washer 10,5x17x1,5
B015988
$3,65 Unit Price incl. VAT
10
Oil pump gear
287913
$6,47 Unit Price incl. VAT
11
Screw w/ flange M6x14
1A000323
Not Available
12
Belleville spring
B015991
$0,34 Unit Price incl. VAT
13
Metric screw M5x20
1A000320
Not Available
14
Convoyeur côté volant complet
1A019814
Not Available
15
Bushing
B015908
$1,18 Unit Price incl. VAT
16
Hex socket screw M5x25
B015981
Not Available
17
Oil dipstick
1A000621
$5,38 Unit Price incl. VAT
18
Joint
1A009397
$0,25 Unit Price incl. VAT
19
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
20
Complete flywheel cover
8798545
$158,88 Unit Price incl. VAT
21
Gasket ring 14x28x7
1A005835
$10,26 Unit Price incl. VAT
22
Flywheel housing cover gasket
877671
$4,12 Unit Price incl. VAT
23
Screw w/ flange M6x30
1A000317
Not Available
24
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
25
Screw w/ flange M6x50
1A000349
$0,42 Unit Price incl. VAT
26
Screw w/ flange M6x90
1A000318
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
