1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 150 Euro 5 ABS
5
Parts Catalog

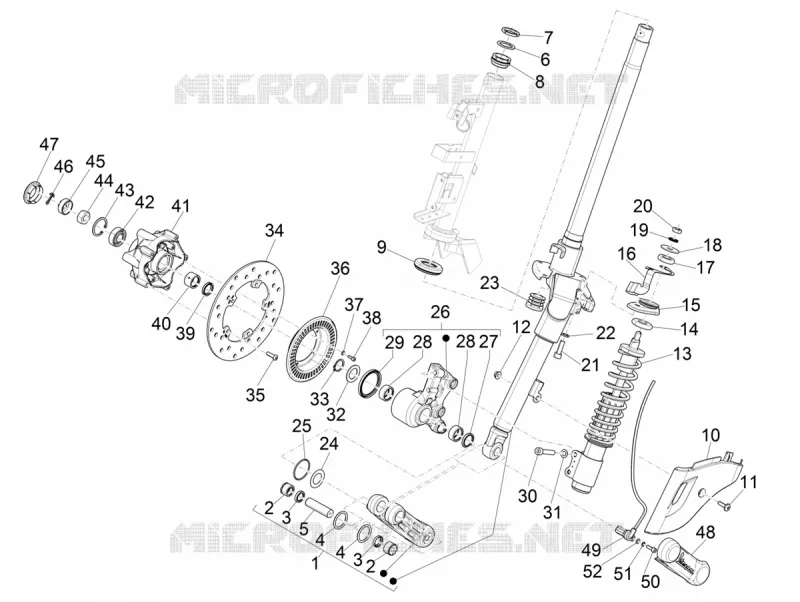

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
TAIL LIGHTS - INDICATORS
by
Cylinder-piston-wrist pin unit
Fork/steering tube - Steering bearing unit
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
Arm complete steering tube
1C0003975
$294,03 Unit Price incl. VAT
2
Roller cage
198513
$5,97 Unit Price incl. VAT
3
Gasket ring
119219
$0,67 Unit Price incl. VAT
4
Gasket
006731
$0,34 Unit Price incl. VAT
5
Piston pin
177451
$3,03 Unit Price incl. VAT
6
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
7
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
8
Upper thrust ring
65069345
$19,08 Unit Price incl. VAT
9
Lower steering bearing
65007545
$25,55 Unit Price incl. VAT
10
Front suspension cover
1C001165
$5,38 Unit Price incl. VAT
11
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
12
Nut
969224
$0,42 Unit Price incl. VAT
13
Amortisseur avant
1C004068R
$163,35 Unit Price incl. VAT
13
Amortisseur avant
1C004075R
$141,68 Unit Price incl. VAT
14
Pad
174874
$2,36 Unit Price incl. VAT
15
Console de fixation amortisseur
1C004308
$7,99 Unit Price incl. VAT
16
Brake pipe support bracket
1C003390
$7,69 Unit Price incl. VAT
17
Pad
174085
$1,18 Unit Price incl. VAT
18
Washer
174088
$0,84 Unit Price incl. VAT
19
Washer
012535
$0,08 Unit Price incl. VAT
20
Nut
021210
$0,16 Unit Price incl. VAT
21
screw
271596
$0,34 Unit Price incl. VAT
22
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
23
Cover
601026
$0,84 Unit Price incl. VAT
24
Washer
177445
$0,34 Unit Price incl. VAT
25
O-ring
177408
$0,08 Unit Price incl. VAT
26
Pin and shock absorber support
1C0023405
$145,71 Unit Price incl. VAT
27
Gasket ring
1C001969
$4,04 Unit Price incl. VAT
28
Drawn cap
177436
$9,18 Unit Price incl. VAT
29
Ring
177494
$1,85 Unit Price incl. VAT
30
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
31
Spring washer
709047
$0,08 Unit Price incl. VAT
32
Washer
177414
$0,75 Unit Price incl. VAT
33
Circlip
006422
$0,16 Unit Price incl. VAT
34
Brake disc
1C000110
$68,85 Unit Price incl. VAT
35
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
36
Roue phonique ABS avant
1C0000955
$23,36 Unit Price incl. VAT
37
Hex socket screw M4x16
959559
$0,25 Unit Price incl. VAT
38
Spring washer
006964
$0,67 Unit Price incl. VAT
39
Gasket ring
177443
$1,77 Unit Price incl. VAT
40
Roller cage
177442
$4,04 Unit Price incl. VAT
41
Front wheel hub
669149
Not Available
42
Bearing
649910
$10,14 Unit Price incl. VAT
43
Snap ring
006635
$0,25 Unit Price incl. VAT
44
Nut
021114
$0,51 Unit Price incl. VAT
45
Cap
177609
$2,19 Unit Price incl. VAT
46
Split pin
012789
$0,16 Unit Price incl. VAT
47
Cover
1C000523
$9,49 Unit Price incl. VAT
48
Front suspension arm cover
561433
Not Available
49
ABS front sensor
1D0005255
Not Available
50
screw
975805
$3,65 Unit Price incl. VAT
51
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
52
Flat washer
669282
$1,43 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
