1
Engine displacement
150
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 150 Euro 5 ABS
5
Parts Catalog

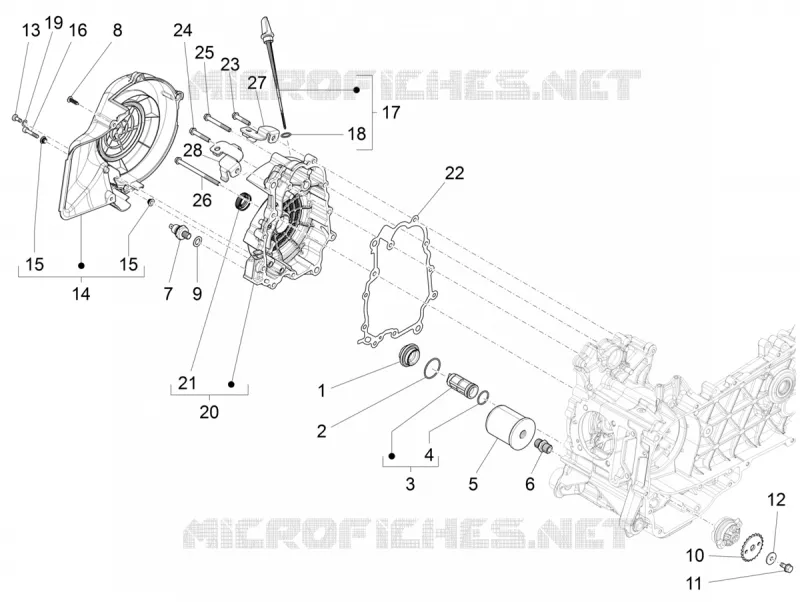

FLYWHEEL COVER - OIL FILTER
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Throttle body - Injector - Inlet manifold
FLYWHEEL COVER - OIL FILTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Oil filter plug
826165
$5,88 Unit Price incl. VAT
2
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
3
Intake oil filter
B015454
$2,52 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
5
Oil filter
82635R
$12,36 Unit Price incl. VAT
6
Special screw
B015455
$3,87 Unit Price incl. VAT
7
Minimum oil pressure sensor
1D001138
Not Available
8
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
9
Rondelle 10,5X17X1,5
1A011500
$0,59 Unit Price incl. VAT
10
Oil pump gear
287913
$6,47 Unit Price incl. VAT
11
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
12
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
13
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
14
Convoyeur côté volant complet
1A018433
Not Available
14
Convoyeur côté volant complet
1A019814
Not Available
15
Bushing
B015908
$1,18 Unit Price incl. VAT
16
Hex socket screw M5x25
1A003115
$0,34 Unit Price incl. VAT
17
Oil dipstick
1A000621
$5,38 Unit Price incl. VAT
18
Joint
1A009397
$0,25 Unit Price incl. VAT
19
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
20
Complete flywheel cover
8798545
$158,88 Unit Price incl. VAT
21
Gasket ring 14x28x7
1A005835
$10,26 Unit Price incl. VAT
22
Flywheel housing cover gasket
877671
$4,12 Unit Price incl. VAT
23
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
24
screw M6x35
414838
$0,67 Unit Price incl. VAT
25
Screw w/ flange M6x50
B016775
$0,42 Unit Price incl. VAT
26
Screw w/ flange M6x90
B016776
$0,67 Unit Price incl. VAT
27
Rear support
1B007876
$1,84 Unit Price incl. VAT
28
Front support
1B007877
$2,48 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
