1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 125 4T 3V ie Euro 5 ABS
5
Parts Catalog
Anti-percolation system
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Tank

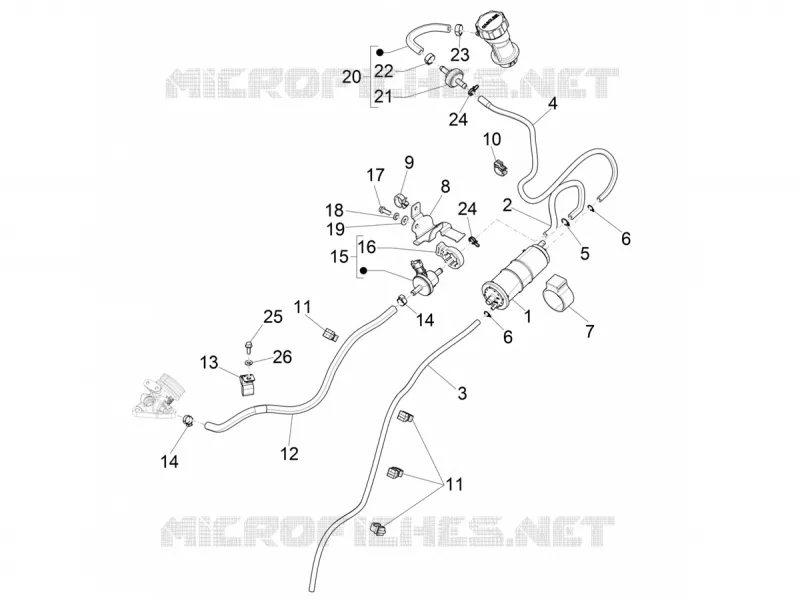

Anti-percolation system
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
1
Canister
1B002848
$24,04 Unit Price incl. VAT
2
Tuyau
CM283436
Not Available
3
Breather pipe
CM001444
$4,87 Unit Price incl. VAT
4
Tuyau L=570
CM283411
$3,28 Unit Price incl. VAT
5
Hose clamp
CM283702
$1,30 Unit Price incl. VAT
6
Hose clamp
CM283701
$0,25 Unit Price incl. VAT
7
Canister support
1B002849
$1,51 Unit Price incl. VAT
8
Bride d'absorbeur
1B007836
Not Available
9
Spring
641652
$0,34 Unit Price incl. VAT
10
Spring
CM013201
$0,40 Unit Price incl. VAT
11
Spring
CM013201
$0,40 Unit Price incl. VAT
12
Tuyau SAE J30 R11-A (o R12 1/4") L.545
CM177980
Not Available
13
Collier
1B008162
$2,70 Unit Price incl. VAT
14
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
15
Solenoid valve
CM2874055
Not Available
16
Support soupape
B018241
$5,55 Unit Price incl. VAT
17
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
18
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
19
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
20
Reniflard complet
1B008142
Not Available
21
Pressure valve
AP8104614
$75,62 Unit Price incl. VAT
22
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
23
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
24
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
25
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
26
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
