1
Engine displacement
125
2
Model
PRIMAVERA
3
Year
2020
4
Trim
Primavera 125 4T 3V ie Euro 5 ABS
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Cylinder head cover

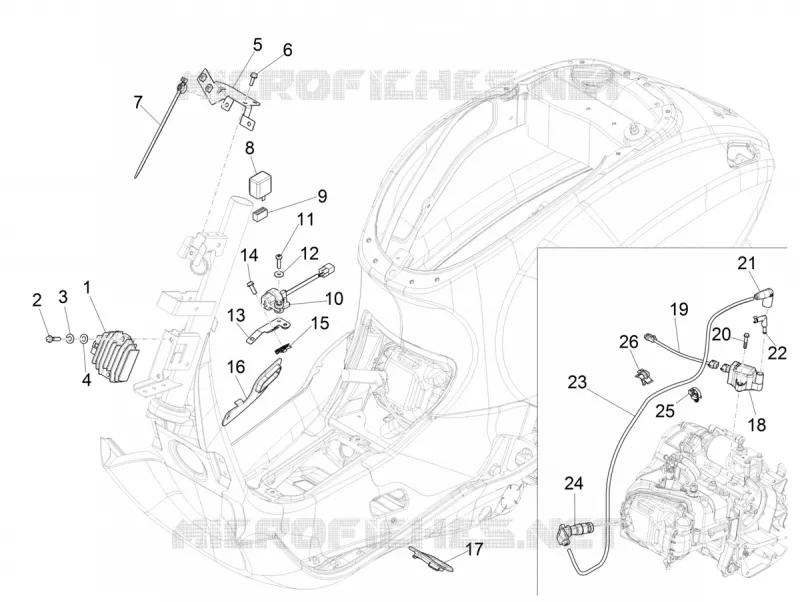

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Régulateur de tension
1A016315R
$54,81 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
4
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
5
Bride de support des connecteurs
1B005388
$15,98 Unit Price incl. VAT
6
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
7
Hose clamp
641764
$0,25 Unit Price incl. VAT
8
Turn indicator control
680228
$26,65 Unit Price incl. VAT
9
Device bracket
642317
$0,50 Unit Price incl. VAT
10
Capteur anti-basculement
2D000473
$40,61 Unit Price incl. VAT
11
screw M5x21
015856
$0,16 Unit Price incl. VAT
12
Washer 5,2X15X1,5
224664
$1,26 Unit Price incl. VAT
13
Support bracket sensor
1D000012
$7,23 Unit Price incl. VAT
14
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
Spacer
680140
$3,65 Unit Price incl. VAT
17
Guard
680147
$6,15 Unit Price incl. VAT
18
HT coil
641901
$52,29 Unit Price incl. VAT
19
Bride pour bobine H.T.
1D003412
$37,83 Unit Price incl. VAT
20
Vis bride
874549
$0,34 Unit Price incl. VAT
21
Insulating cap
641040
$4,45 Unit Price incl. VAT
22
HV terminal
641725
Not Available
23
H.V. cable
080341
$5,89 Unit Price incl. VAT
24
Screened cap
642200
$17,82 Unit Price incl. VAT
25
Hose clamp
641764
$0,25 Unit Price incl. VAT
26
Hose clamp
D9004464092
$0,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
