Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil FOR Primavera 125 3V Euro 5 ABS FROM 2021

Rear suspension - Shock absorber/s

Cylinder head cover

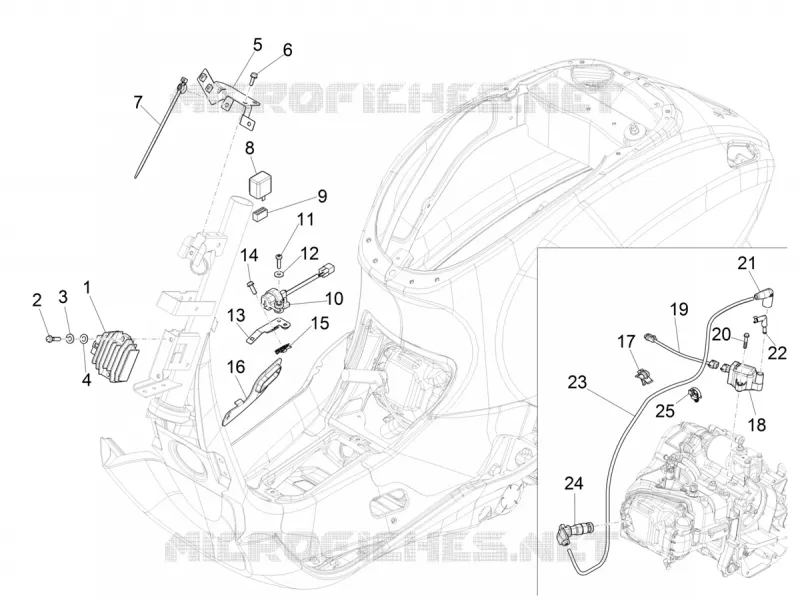

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

1

Régulateur de tension

1A016315R

$54,81 Unit Price incl. VAT

2

Vis taraud

1D002606

$0,42 Unit Price incl. VAT

3

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

4

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

5

Bride de support des connecteurs

1B005388

$15,98 Unit Price incl. VAT

6

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

7

Hose clamp

641764

$0,25 Unit Price incl. VAT

8

Dispositif de commande des clignotants

1D002821

Not Available

9

Device bracket

642317

$0,50 Unit Price incl. VAT

10

Capteur anti-basculement

2D000473

$40,61 Unit Price incl. VAT

11

TBIC screw

015597

$0,08 Unit Price incl. VAT

12

Washer 5,2X15X1,5

224664

$1,26 Unit Price incl. VAT

13

Support bracket sensor

1D000012

$7,23 Unit Price incl. VAT

14

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

15

Spring plate M6

254485

$0,34 Unit Price incl. VAT

16

Spacer

680140

$3,65 Unit Price incl. VAT

17

Hose clamp

D9004464092

$0,59 Unit Price incl. VAT

18

HT coil

641901

$52,29 Unit Price incl. VAT

19

Bride pour bobine H.T.

1D003412

$37,83 Unit Price incl. VAT

20

Vis bride

874549

$0,34 Unit Price incl. VAT

21

Insulating cap

641040

$4,45 Unit Price incl. VAT

22

HV terminal

641725

Not Available

23

H.V. cable

080341

$5,89 Unit Price incl. VAT

24

Screened cap

642200

$17,82 Unit Price incl. VAT

25

Hose clamp

667643

$1,18 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
