Fork/steering tube - Steering bearing unit FOR Primavera 125 3V Euro 5 ABS FROM 2021

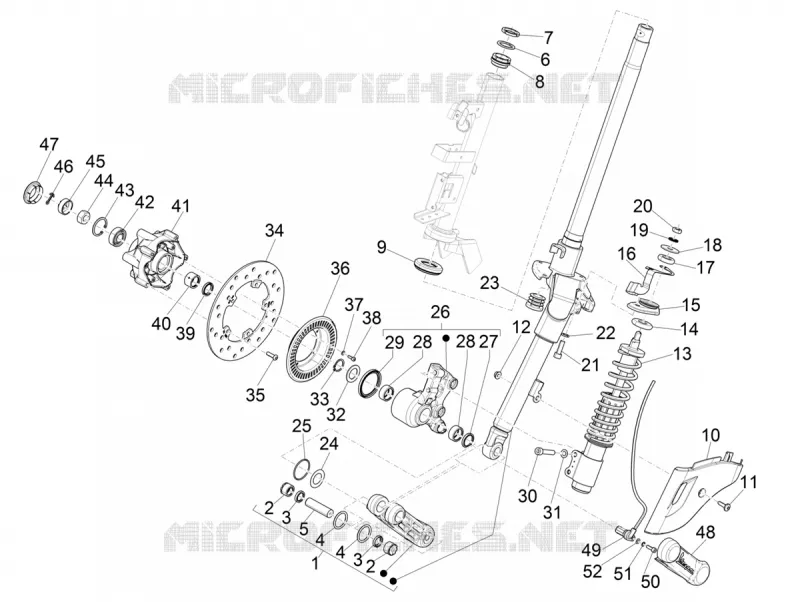

Fork/steering tube - Steering bearing unit

1

Arm complete steering tube

1C0003975

$294,03 Unit Price incl. VAT

2

Roller cage

198513

$5,97 Unit Price incl. VAT

3

Gasket ring

119219

$0,67 Unit Price incl. VAT

4

Gasket

006731

$0,34 Unit Price incl. VAT

5

Piston pin

177451

$3,03 Unit Price incl. VAT

6

Steering tube ring nut

0111094

$2,60 Unit Price incl. VAT

7

Washer of the steering

0037514

$1,51 Unit Price incl. VAT

8

Upper thrust ring

65069345

$19,08 Unit Price incl. VAT

9

Lower steering bearing

1C0016085

$48,60 Unit Price incl. VAT

10

Front suspension cover

1C001165

$5,38 Unit Price incl. VAT

11

Metric screw TBC

CM179302

$0,55 Unit Price incl. VAT

12

Self locking nut M6

241936

$0,08 Unit Price incl. VAT

13

Amortisseur avant

1C004068R

$163,35 Unit Price incl. VAT

14

Pad

174874

$2,36 Unit Price incl. VAT

15

Console de fixation amortisseur

1C004308

$7,99 Unit Price incl. VAT

16

Brake pipe support bracket

1C000327

$13,53 Unit Price incl. VAT

17

Pad

174085

$1,18 Unit Price incl. VAT

18

Washer

174088

$0,84 Unit Price incl. VAT

19

Washer

012535

$0,08 Unit Price incl. VAT

20

Nut

021210

$0,16 Unit Price incl. VAT

21

screw

271596

$0,34 Unit Price incl. VAT

22

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

23

Cover

781276

$5,38 Unit Price incl. VAT

24

Washer

177445

$0,34 Unit Price incl. VAT

25

O-ring

177408

$0,08 Unit Price incl. VAT

26

Pin and shock absorber support

1C0023405

$145,71 Unit Price incl. VAT

27

Gasket ring

1C001969

$4,04 Unit Price incl. VAT

28

Drawn cap

177436

$9,18 Unit Price incl. VAT

29

Ring

177494

$1,85 Unit Price incl. VAT

30

Hex socket screw M8x40

149104

$0,51 Unit Price incl. VAT

31

Spring washer

709047

$0,08 Unit Price incl. VAT

32

Washer

177414

$0,75 Unit Price incl. VAT

33

Circlip

006422

$0,16 Unit Price incl. VAT

34

Brake disc

1C000110

$68,85 Unit Price incl. VAT

35

Hex socket screw M6x20

667152

$0,26 Unit Price incl. VAT

36

Roue phonique ABS avant

1C0000955

$23,36 Unit Price incl. VAT

37

screw

292500

$2,95 Unit Price incl. VAT

38

Spring washer

006964

$0,67 Unit Price incl. VAT

39

Gasket ring

177443

$1,77 Unit Price incl. VAT

40

Roller cage

177442

$4,04 Unit Price incl. VAT

41

Front wheel hub

669149

Not Available

42

Bearing

649910

$10,14 Unit Price incl. VAT

43

Snap ring

006635

$0,25 Unit Price incl. VAT

44

Nut

021114

$0,51 Unit Price incl. VAT

45

Cap

177609

$2,19 Unit Price incl. VAT

46

Split pin

012787

$0,16 Unit Price incl. VAT

47

Cover

5A000238

$1,51 Unit Price incl. VAT

48

Front suspension arm cover

561433

Not Available

49

ABS front sensor

1D0009685

Not Available

50

screw

975805

$3,65 Unit Price incl. VAT

51

Washer Ã˜5,3xÃ˜10x0,5

006975

$0,17 Unit Price incl. VAT

52

Flat washer

669282

$1,43 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
