1
Engine displacement
300
2
Model
GTV
3
Year
2020
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Oil pump
Front shield
1
1
1
1
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
1
Cache-direction
1B0066844
Not Available
1
Cache colonne de direction peint
1B006691500EZ
Not Available
1
Cache colonne de direction peint
1B006684000GP
Not Available
1
Cache colonne de direction peint
1B006684000EZ
$98,68 Unit Price incl. VAT
2
Self-tapping screw
CM179101
$0,30 Unit Price incl. VAT
3
Expansion plug
199190
$2,95 Unit Price incl. VAT
4
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
5
Ornement supérieur
1B0057750000C
Not Available
5
Ornement supérieur
1B005775000QB
Not Available
6
Ornement intermédiaire
1B005776000BR
Not Available
6
Ornement intermédiaire
1B0057760000C
Not Available
7
Ornement inférieur
1B005777000R7
Not Available
7
Ornement inférieur
1B0057770000C
Not Available
8
Bord de tablier D
1B003380
$23,47 Unit Price incl. VAT
9
Bord de tablier G
1B003379
$23,47 Unit Price incl. VAT
10
Porte-plaque
1B006690
Not Available
11
Support plaque
1B006689
Not Available
12
screw M6x25
CM179305
$0,25 Unit Price incl. VAT
13
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
14
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
15
Nut M6
020106
$0,08 Unit Price incl. VAT

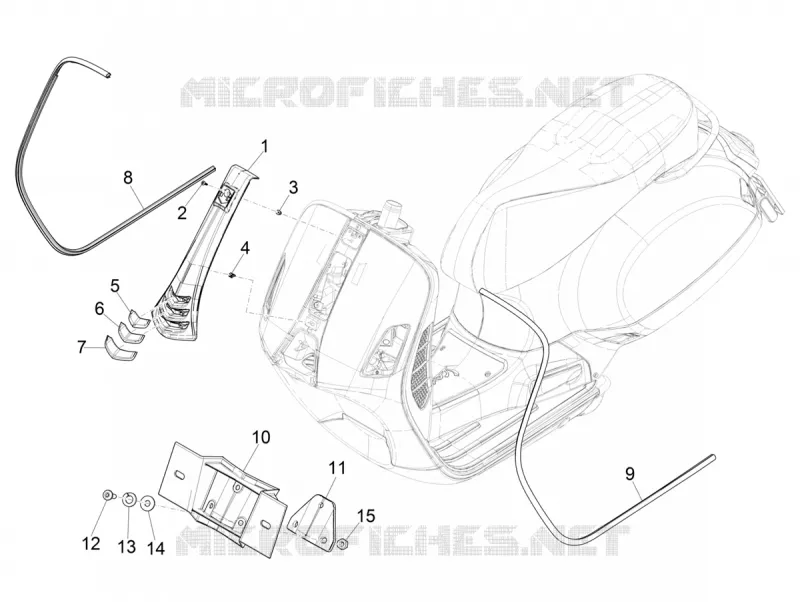

Find the detailed Front shield GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
