1
Engine displacement
300
2
Model
GTV
3
Year
2020
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog
Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Rocking levers support unit
by
Remote control switches - Battery - Horn
Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
1
Complete rear shock absorber
58503R
Not Available
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Flat washer
267038
$0,67 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
5
Nut M8
021108
$0,25 Unit Price incl. VAT
6
plate
598143
$5,38 Unit Price incl. VAT
7
Bush
597149
$3,65 Unit Price incl. VAT
8
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
9
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
10
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
11
Nut M8
020008
$0,08 Unit Price incl. VAT
12
Right arm
1A001903
Not Available
13
Ball bearing
82545R
$12,11 Unit Price incl. VAT
14
Washer
013962
$2,95 Unit Price incl. VAT
15
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
16
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
17
Spring washer
709047
$0,08 Unit Price incl. VAT
18
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
19
ABS rear sensor
B000526
$188,29 Unit Price incl. VAT
20
Flat washer
669282
$1,43 Unit Price incl. VAT
21
Torx convex big end screw M5x16
B0167965
$0,16 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
23
Hose clamp
643413
$3,65 Unit Price incl. VAT
24
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
25
Hose clamp
9004461229000
$4,62 Unit Price incl. VAT

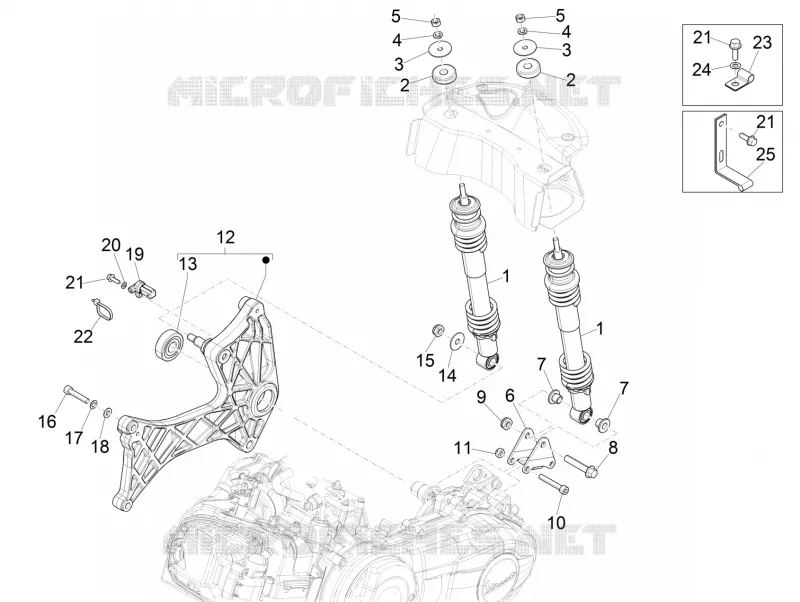

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
