Saddle/seats FOR 946 125 Euro 5 ABS Christian Dior FROM 2021

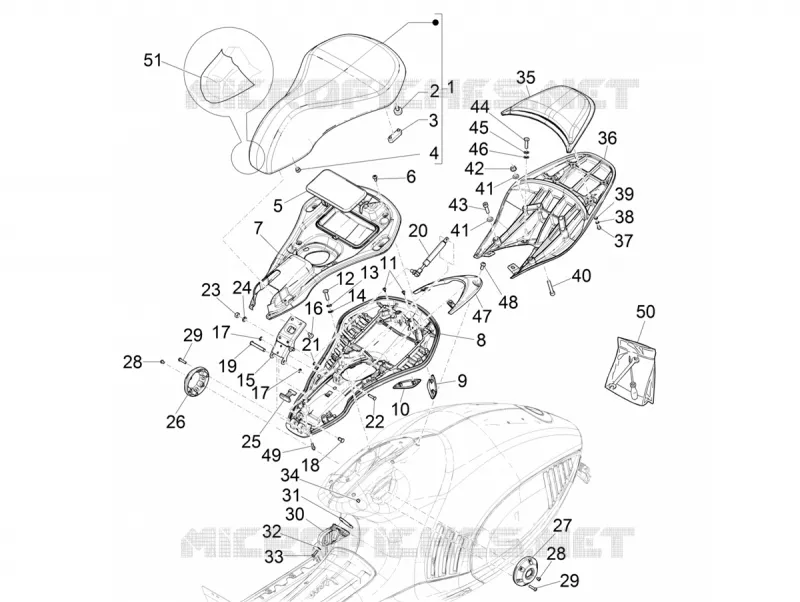

Saddle/seats

1

Saddle assembly

1B008197

$1 049,95 Unit Price incl. VAT

2

Stop buffer

296456

$2,77 Unit Price incl. VAT

3

Pad

577492

$4,21 Unit Price incl. VAT

4

Pad

623504

$2,77 Unit Price incl. VAT

5

Cover

1B001102

$6,39 Unit Price incl. VAT

6

Self-tapping screw M6x14

1B000068

$0,92 Unit Price incl. VAT

7

Saddle cover

1B001062

$39,17 Unit Price incl. VAT

8

Seat support

1B0026285

$656,90 Unit Price incl. VAT

9

Bouchon gauche

1B008210

$44,14 Unit Price incl. VAT

10

Bouchon

1B008211

$44,14 Unit Price incl. VAT

11

Self tapping screw

297498

$0,08 Unit Price incl. VAT

12

screw

031120

$0,42 Unit Price incl. VAT

13

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

14

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

15

Saddle hinge

675930

$58,93 Unit Price incl. VAT

16

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

17

Snap ring

620970

$0,08 Unit Price incl. VAT

18

Pin

675929

$11,52 Unit Price incl. VAT

19

Pin

675932

$3,61 Unit Price incl. VAT

20

Spring

675604

$30,51 Unit Price incl. VAT

21

Ring

005964

$3,70 Unit Price incl. VAT

22

Pin

675935

$3,45 Unit Price incl. VAT

23

Nut M8x6,5

020108

$0,08 Unit Price incl. VAT

24

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

25

Stop buffer

1B000980

$7,31 Unit Price incl. VAT

26

Bouchon D

1B008200

$161,05 Unit Price incl. VAT

27

Bouchon G

1B008212

$120,85 Unit Price incl. VAT

28

TBIC screw

1B000260

$3,65 Unit Price incl. VAT

29

Hex socket screw

654507

$0,60 Unit Price incl. VAT

30

Crochet porte-sacs

1B00818945

$573,39 Unit Price incl. VAT

31

Gasket

1B000167

$1,35 Unit Price incl. VAT

32

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

33

Hex socket screw

834038

$0,29 Unit Price incl. VAT

34

Self locking nut

012138

$0,17 Unit Price incl. VAT

35

Selle passager

1B008273

$443,87 Unit Price incl. VAT

36

Support de selle passager

1B008198

$1 258,88 Unit Price incl. VAT

37

TBCEI Screw M6x12

658848

$4,32 Unit Price incl. VAT

38

Break washer

479515

$0,08 Unit Price incl. VAT

39

Washer 8,6x6,2x1

641548

$3,65 Unit Price incl. VAT

40

Hex socket screw

1B001477

$0,92 Unit Price incl. VAT

41

Washer

006978

$0,25 Unit Price incl. VAT

42

Flanged nut

015341

$0,42 Unit Price incl. VAT

43

screw M8x30

015792

$0,51 Unit Price incl. VAT

44

screw

031120

$0,42 Unit Price incl. VAT

45

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

46

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

47

Corniche sup.

1B008176

$78,65 Unit Price incl. VAT

48

Hex socket screw

1B001190

$3,65 Unit Price incl. VAT

49

Threaded pin

1B000912

$4,46 Unit Price incl. VAT

50

Tool set, standard l/jack

1C000285

$27,49 Unit Price incl. VAT

51

Hous. de selle

1B009133

$237,23 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
