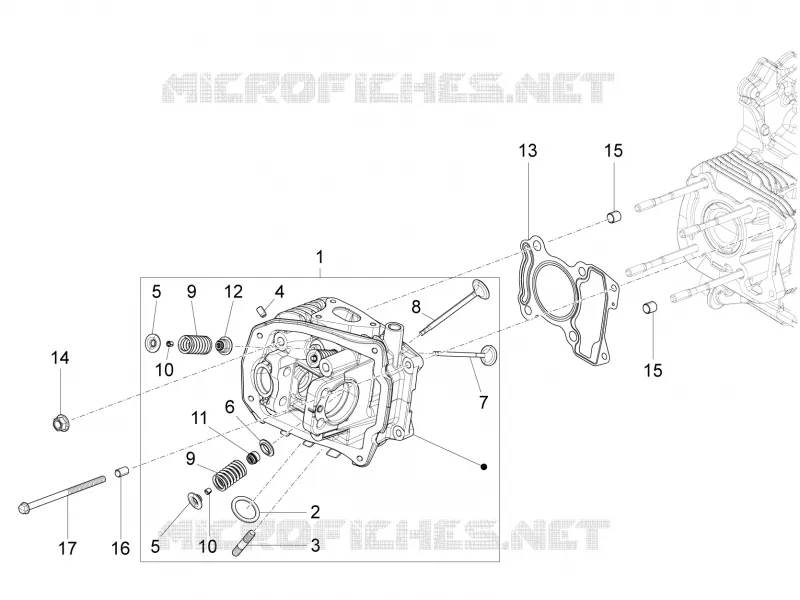

CYLINDER HEAD - VALVES
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
11
11
12
12
13
13
14
14
15
15
15
15
16
16
17
17
1
Complete cylinder head
1A007037R
$247,23 Unit Price incl. VAT
2
Big end-silencer gasket
434716
$1,35 Unit Price incl. VAT
3
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
4
Plug M6x10
842360
$0,75 Unit Price incl. VAT
5
Upper cap
B013833
$1,26 Unit Price incl. VAT
6
Lower cap
483711
$1,35 Unit Price incl. VAT
7
Valve, in Ø 20
B019320
$8,24 Unit Price incl. VAT
8
Exaust valve Ø22
B013716
$26,82 Unit Price incl. VAT
9
Ext. valve spring
879456
$4,54 Unit Price incl. VAT
10
Half-cone
B015484
$0,92 Unit Price incl. VAT
11
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
12
Cup
843307
$2,77 Unit Price incl. VAT
13
Cylinder head gasket
B018873
$4,82 Unit Price incl. VAT
14
Nut M8x1,25
411296
$0,50 Unit Price incl. VAT
15
Locating dowel
435571
$0,50 Unit Price incl. VAT
16
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
17
Screw w/ flange M6x110
B017150
$1,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
