1
Engine displacement
300
2
Model
BEVERLY
3
Year
2023
4
Trim
Beverly 300 4T/4V HPE Euro 5 ABS
5
Parts Catalog

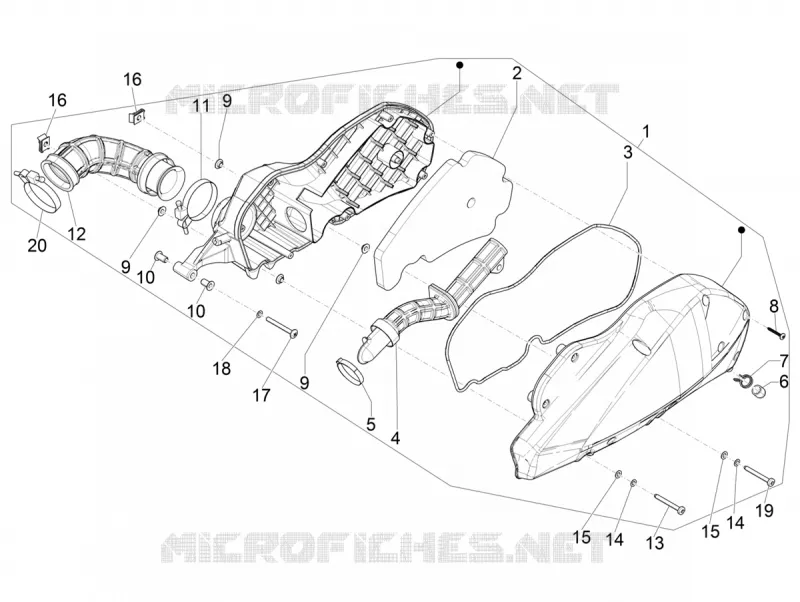

Air filter
6
Parts Diagram
Parts Catalog
Driving pulley
by
Stand/s
Air filter
1
2
3
4
5
6
7
8
9
9
9
10
10
11
12
13
14
14
15
15
16
16
17
18
19
20
1
Boîtier filtre à air compl.
1A012926
$98,50 Unit Price incl. VAT
2
Filtre air PREMIUM
8292580P
$8,78 Unit Price incl. VAT
3
Filter cover gasket
829259
$14,30 Unit Price incl. VAT
4
Durite d'admission
1A011539
$13,03 Unit Price incl. VAT
5
Collier serr. Tube 44
CM001928
$6,60 Unit Price incl. VAT
6
Cap
827831
$2,60 Unit Price incl. VAT
7
Hose clamp
CM002910
$0,59 Unit Price incl. VAT
8
Self-tap screw
478533
$1,36 Unit Price incl. VAT
9
Knurled bushing
830056
$0,34 Unit Price incl. VAT
10
Bushing
830057
$1,01 Unit Price incl. VAT
11
Hose clamp
260918
$1,68 Unit Price incl. VAT
12
Manchon corps papil.
1A012927
$15,00 Unit Price incl. VAT
13
Special cap screw M6x55
1B000678
$0,51 Unit Price incl. VAT
14
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
15
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Metric screw torx
CM179306
$2,95 Unit Price incl. VAT
18
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
19
Vis M6x45
CM179308
$0,44 Unit Price incl. VAT
20
Hose clamp
260918
$1,68 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
