1
Engine displacement
300
2
Model
BEVERLY
3
Year
2023
4
Trim
Beverly 300 4T/4V HPE Euro 5 ABS
5
Parts Catalog

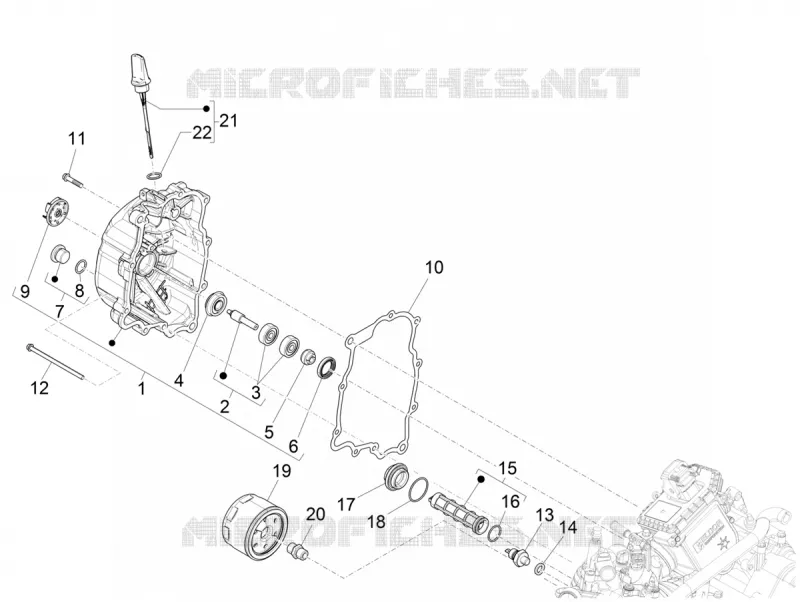

FLYWHEEL COVER - OIL FILTER
6
Parts Diagram
Parts Catalog
MAIN WIRING HARNESS
by
Cdi magneto assy
FLYWHEEL COVER - OIL FILTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Couvercle volant électromagnétique
1A0187175
$195,19 Unit Price incl. VAT
2
Water pump shaft assy.
8447595
$54,95 Unit Price incl. VAT
3
Bearing 28x8x9
82755R
$14,18 Unit Price incl. VAT
4
Gasket ring
82991R
$24,39 Unit Price incl. VAT
5
Pump impeller drive key
842389
$5,64 Unit Price incl. VAT
6
Gasket ring 20x30x5
82897R
$4,36 Unit Price incl. VAT
7
Timing plug assembly
8290405
$10,28 Unit Price incl. VAT
8
Joint
1A009397
$0,25 Unit Price incl. VAT
9
Water pump impeller cpl.
844730
$3,01 Unit Price incl. VAT
10
Flywheel housing cover gasket
840504
$2,91 Unit Price incl. VAT
11
screw M6x35
414838
$0,67 Unit Price incl. VAT
12
screw M6x112,5
B016807
$1,26 Unit Price incl. VAT
13
Minimum oil pressure sensor
1D001138
Not Available
14
Rondelle 10,5X17X1,5
1A011500
$0,59 Unit Price incl. VAT
15
Intake oil filter
843568
$14,92 Unit Price incl. VAT
16
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
17
Oil filter plug
826165
$5,88 Unit Price incl. VAT
18
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
19
Oil filter
82635R
$12,36 Unit Price incl. VAT
20
Oil filter special screw
840507
$10,25 Unit Price incl. VAT
21
Oil dipstick
879081
$5,38 Unit Price incl. VAT
22
Joint
1A009397
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
