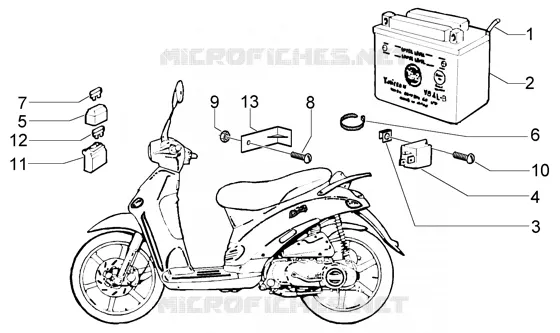

Electrical device
1
2
3
4
5
6
7
9
10
11
12
13
1
Breather pipe
294485
$5,38 Unit Price incl. VAT
2
Battery 12V-9Ah
2188235
Not Available
3
Plate
575290
$3,65 Unit Price incl. VAT
4
Rem. control switch
584319
Not Available
4
Rem. control switch 80a
583337
Not Available
5
Cover
290404
$0,42 Unit Price incl. VAT
6
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
7
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
9
Self locking nut M5
241937
Not Available
10
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
11
Fuse holder
580653
$35,69 Unit Price incl. VAT
12
Fuse 15A
290860
$5,73 Unit Price incl. VAT
13
Square
581573
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
