by

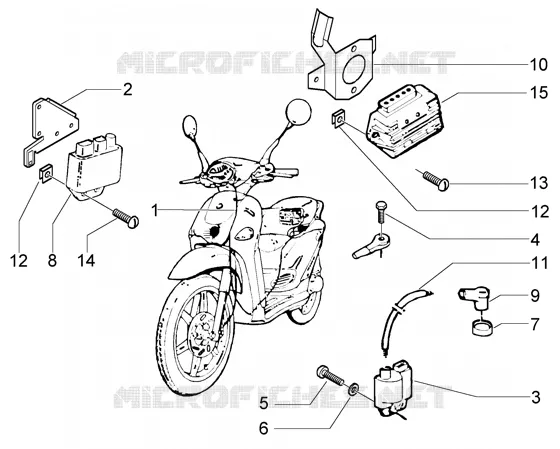

Electrical device
1
2
3
4
7
8
9
10
12
12
13
14
15
1
Cable harness
583547
Not Available
2
Bracket
582824
Not Available
3
HT coil
82597R
$9,99 Unit Price incl. VAT
4
Screw w/ flange
436788
Not Available
7
Protection collar
436919
$1,45 Unit Price incl. VAT
8
Device
58053R
Not Available
8
Device
827830
Not Available
9
Screened cap
969348
$8,17 Unit Price incl. VAT
10
Bracket
581597
$11,69 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Screw w/ flange M6x25
414837
Not Available
14
Screw w/ flange
436788
Not Available
15
Voltage regulator
82501R
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
