1
Engine displacement
300
2
Model
GTV
3
Year
2019
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog
CENTRAL COVER - FOOTRESTS
6
Parts Diagram
Parts Catalog
Head - valves
by
Meter combination - Cruscotto

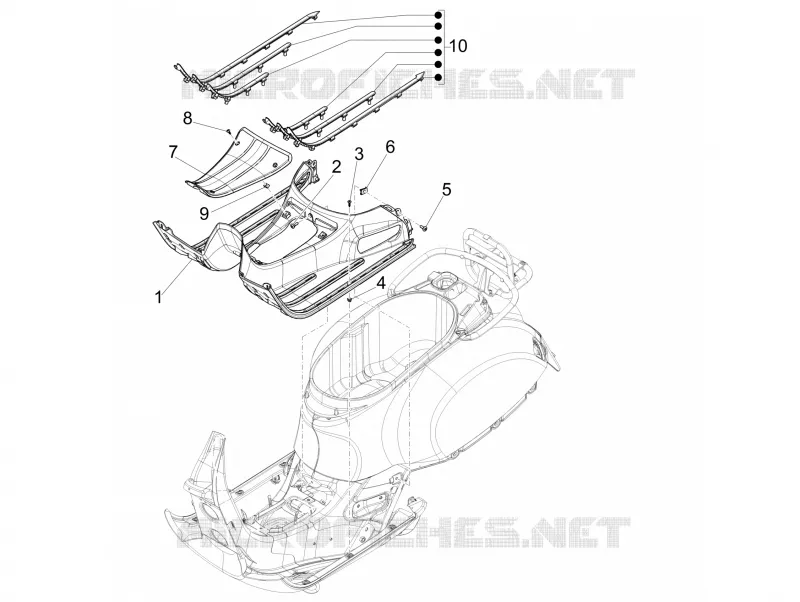

CENTRAL COVER - FOOTRESTS
1
2
3
4
5
6
7
8
9
10
1
Footrest
656637
Not Available
1
Repose-pieds peint
65663740HX
Not Available
2
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
3
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
4
Expansion plug
157716
$0,08 Unit Price incl. VAT
5
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Battery cover
1B001014
$45,50 Unit Price incl. VAT
8
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Kit strips, footboard
656648
$97,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
