1
Engine displacement
300
2
Model
GTV
3
Year
2019
4
Trim
GTV 300 HPE SEI GIORNI ie Euro 4 ABS
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
HEADLIGHT - INDICATORS
by
TAIL LIGHTS - INDICATORS

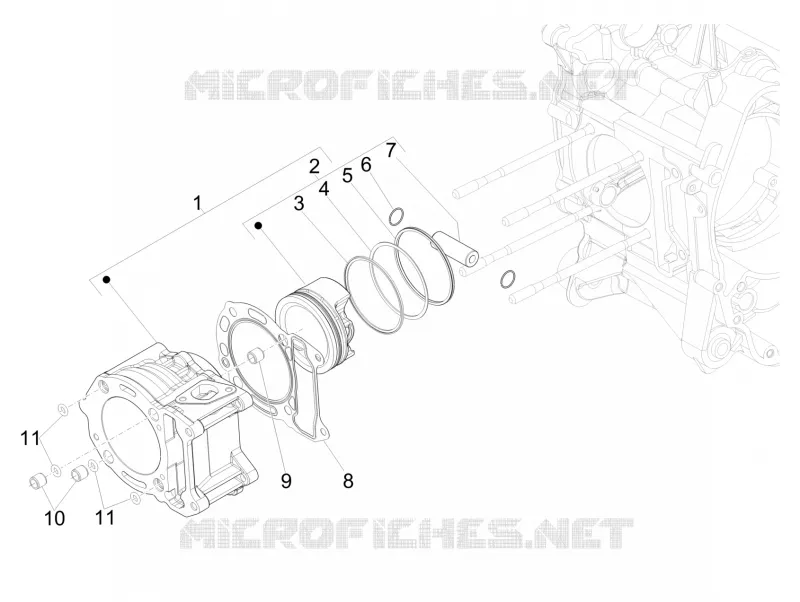

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Groupe cylindre - piston - axe du piston - segments - bagues
1A013363
Not Available
2
Groupe piston axe Cat. 2 "N"
1A0133640N
$472,50 Unit Price incl. VAT
2
Groupe piston axe Cat. 3 "O"
1A0133640O
$472,50 Unit Price incl. VAT
2
Groupe piston axe Cat 1 "M"
1A0133640M
$472,50 Unit Price incl. VAT
2
Groupe piston axe Cat. 4 "P"
1A0133640P
$472,50 Unit Price incl. VAT
3
Segment de compression
1A011379
$35,44 Unit Price incl. VAT
4
Segment racleur d'huile
1A013666
$42,53 Unit Price incl. VAT
5
Segment racleur d'huile
1A013667
$56,70 Unit Price incl. VAT
6
Snap ring
875096
$0,19 Unit Price incl. VAT
7
Piston pin
875005
$10,82 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Locating dowel
B015957
$0,59 Unit Price incl. VAT
11
O-ring
B017342
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
