1
Engine displacement
180
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon LXT
5
Parts Catalog

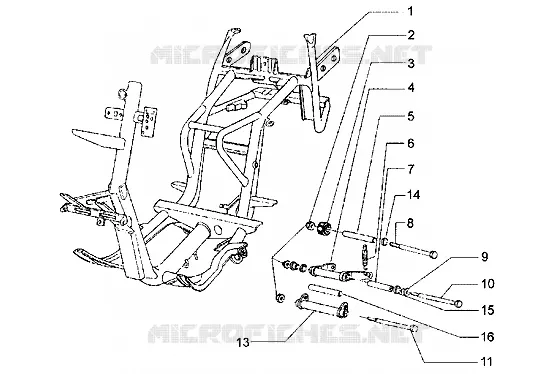

Chassis-Swingingarm-side stand
6
Parts Diagram
Parts Catalog
Engine
by
Central stand-Side stand
Chassis-Swingingarm-side stand
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
1
Frame
5621576
Not Available
2
Self locking nut M10
232108
Not Available
3
Sil.block
2727785
$28,28 Unit Price incl. VAT
4
Swinging arm
273463
Not Available
5
Spacer
271395
Not Available
6
Spring
272329
Not Available
7
Spacer
273765
Not Available
8
Hex socket screw M10x215
271779
$2,11 Unit Price incl. VAT
9
Bush
273773
$3,65 Unit Price incl. VAT
10
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
11
Hex screw M10x245
563977
$3,70 Unit Price incl. VAT
13
Swinging arm
273766
Not Available
14
Circlip
006416
$0,08 Unit Price incl. VAT
15
Oil seal
273774
$3,65 Unit Price incl. VAT
16
Spacer
CM067802
$8,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
