by

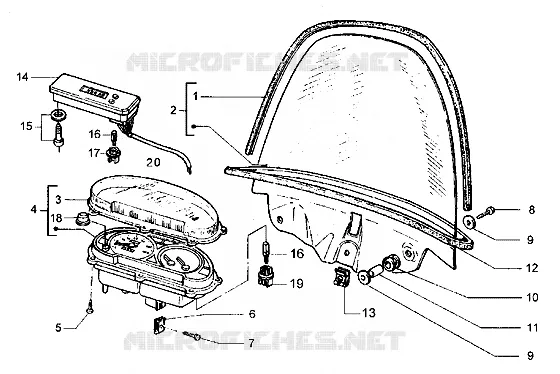

Speedometer (kms)-Windshield
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
1
Gasket
273611
Not Available
2
Windscreen
273613
Not Available
3
Cover
494712
Not Available
4
Meter combination
580822
Not Available
4
Meter combination
580821
Not Available
5
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
6
Spring plate
184142
Not Available
7
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
8
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
9
Flat washer
270216
$2,99 Unit Price incl. VAT
10
Gasket
566752
$0,53 Unit Price incl. VAT
11
Spacer
270215
$3,65 Unit Price incl. VAT
12
Gasket
563214
Not Available
13
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Clock
294624
Not Available
15
Self tapping screw 2,9x9,5
015727
$1,26 Unit Price incl. VAT
16
12v-1.2w bulb
164634
$4,38 Unit Price incl. VAT
17
Lampholder
217100
Not Available
18
Cap
494752
Not Available
19
Lampholder, complete 12V-1,2W
253366
$4,82 Unit Price incl. VAT
20
Cable harn.
580142
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
