1
Engine displacement
300
2
Model
BEVERLY
3
Year
2019
4
Trim
Beverly 300 ie ABS Euro 4
5
Parts Catalog
LOCKS
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Cylinder-piston-wrist pin unit
LOCKS
1
2
3
4
5
6
7
8
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Lock kit
1B004795
$132,65 Unit Price incl. VAT
2
Hewn key with transponder
656264
$68,04 Unit Price incl. VAT
3
Gasket ring
298731
$0,25 Unit Price incl. VAT
4
Block
577816
$20,60 Unit Price incl. VAT
5
Flat washer
298594
$1,01 Unit Price incl. VAT
6
Cylinder retainer spring
298838
$0,51 Unit Price incl. VAT
7
Lock body
1B002607
$7,08 Unit Price incl. VAT
8
Spring
253937
$0,25 Unit Price incl. VAT
10
Special screw
299972
$0,50 Unit Price incl. VAT
11
Self locking nut
577620
$0,08 Unit Price incl. VAT
12
Transmission support bracket
657224
$6,30 Unit Price incl. VAT
13
Lock lever
656855
$5,38 Unit Price incl. VAT
14
Immobilizer antenna
638534
Not Available
15
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
16
Elastic spring
231590
$0,25 Unit Price incl. VAT
17
Saddle tightening spring actuator
675783
$8,01 Unit Price incl. VAT
18
Joint
577128
$1,01 Unit Price incl. VAT
19
Solenoid valve
582990
Not Available
20
Hexagonal-head screw
584121
$0,34 Unit Price incl. VAT
21
Self locking nut
577620
$0,08 Unit Price incl. VAT
22
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
23
Saddle cable
CM012841
$11,34 Unit Price incl. VAT
24
Saddle lock
CM023701
$9,50 Unit Price incl. VAT
25
screw
CM179202
$0,25 Unit Price incl. VAT
26
Actuator-lever saddle transmission
CM012842
$10,67 Unit Price incl. VAT
27
Bike finder
1D002372R
Not Available
28
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
29
Spring plate M5
248419
$0,67 Unit Price incl. VAT

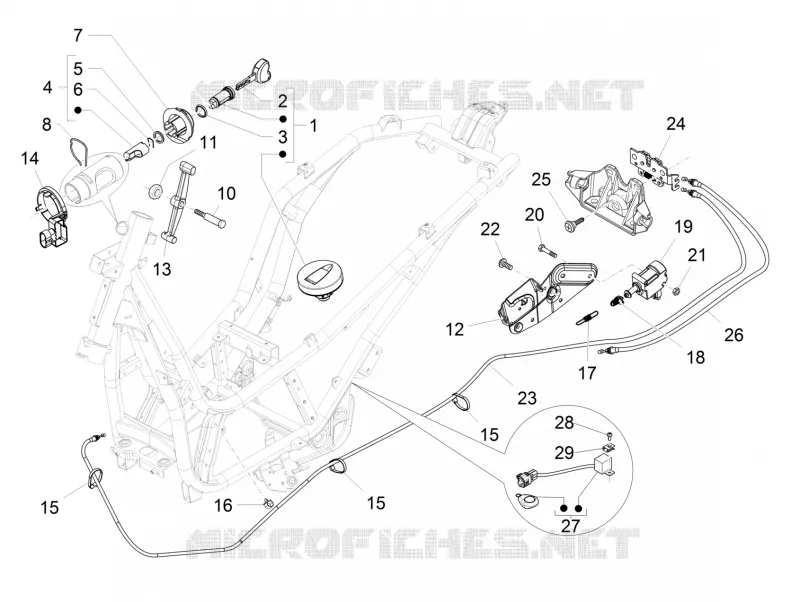

Find the detailed LOCKS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
