1
Engine displacement
300
2
Model
BEVERLY
3
Year
2019
4
Trim
Beverly 300 ie ABS Euro 4
5
Parts Catalog
CASING
6
Parts Diagram
Parts Catalog
Stand/s
by
Handlebars coverages
CASING
1
2
2
3
3
4
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
1
Complete crankcase 1st cat.
1A0009750A
$1 908,92 Unit Price incl. VAT
1
2nd cat. complete crankcase
1A0009750B
$1 908,92 Unit Price incl. VAT
2
Stud bolt
1A003628R
$10,95 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
4
Radial ball bearing 15x42x13
83018R
$4,46 Unit Price incl. VAT
5
Locating dowel
B015957
$0,59 Unit Price incl. VAT
6
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
7
Radial ball bearing 20x47x14
833701
Not Available
8
Gasket ring 20-32-7
82878R
$10,25 Unit Price incl. VAT
9
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
10
Nozzle
484034
$6,44 Unit Price incl. VAT
11
Nozzle D 1.1
844582
$0,05 Unit Price incl. VAT
12
Silent-block
486081
$6,73 Unit Price incl. VAT
13
Gasket
875111
$3,34 Unit Price incl. VAT
14
Screw M5x10
018575
$2,95 Unit Price incl. VAT
15
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
16
Spring
485655
$1,26 Unit Price incl. VAT
17
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
18
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
19
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
20
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
21
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
22
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
23
Filter door insert
845861
$3,82 Unit Price incl. VAT
24
Gasket
431065
$0,42 Unit Price incl. VAT
25
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT

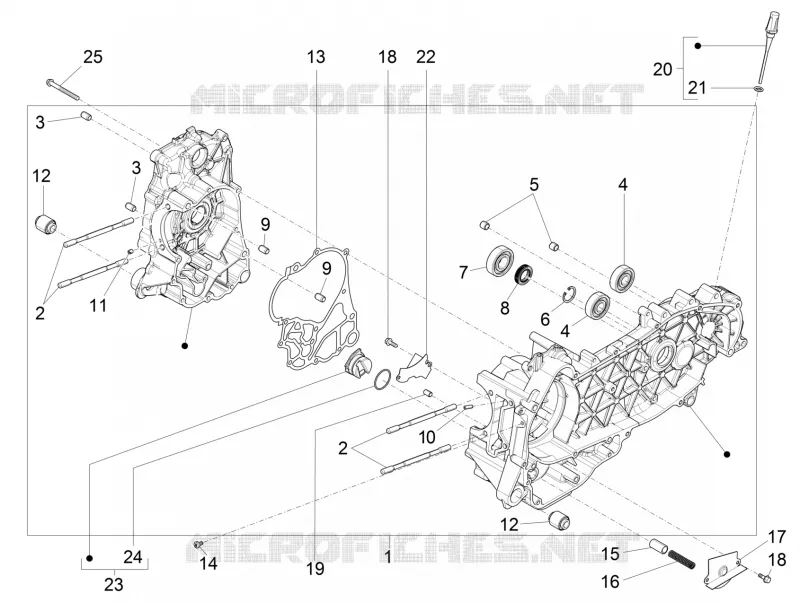

Find the detailed CASING GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
