1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Rocking levers support unit
6
Parts Diagram
Parts Catalog
by
Flywheel magneto
Rocking levers support unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Intake rocker with shoe
B0184835
Not Available
2
Nut
484819
$0,24 Unit Price incl. VAT
3
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
4
Exhaust rocker with shoe
B0184845
Not Available
5
Nut
484819
$0,24 Unit Price incl. VAT
6
Adjuster screw
82817R
$8,01 Unit Price incl. VAT
7
Rocker arms axis
486343
$2,77 Unit Price incl. VAT
8
Camshaft axle with U.P.
8759585
$123,39 Unit Price incl. VAT
9
Camshaft plate
877309
$1,41 Unit Price incl. VAT
10
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
11
Washer
877310
$3,65 Unit Price incl. VAT
12
Timing system gear
877308
$8,91 Unit Price incl. VAT
13
Decompressor counterweight
880650
$4,82 Unit Price incl. VAT
14
Gasket
487833
$0,24 Unit Price incl. VAT
15
Spring
486974
$0,15 Unit Price incl. VAT
16
Decompression counterweight
8291395
$15,46 Unit Price incl. VAT
17
Washer
B013841
$1,35 Unit Price incl. VAT
18
Hex socket screw M5x30
1A003053
$0,84 Unit Price incl. VAT
19
screw M6x35
414838
$0,67 Unit Price incl. VAT

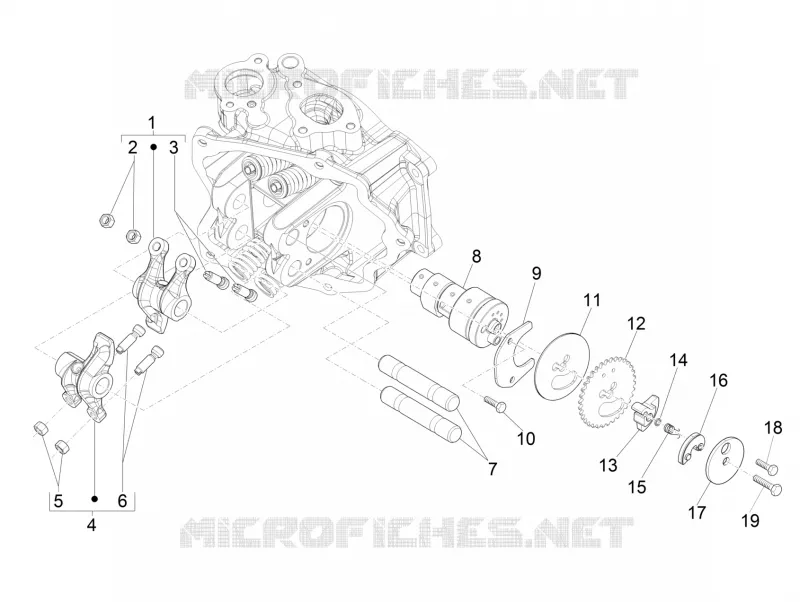

Find the detailed Rocking levers support unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
