1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog

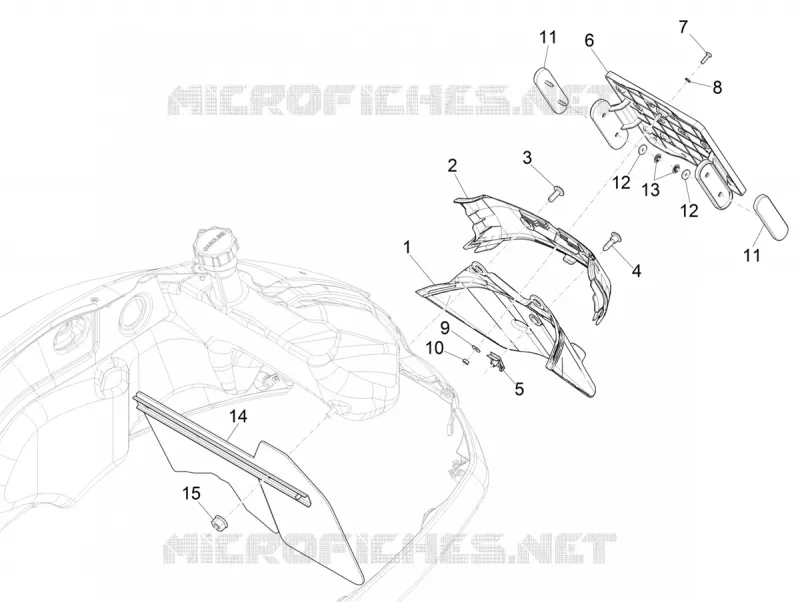

Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Meter combination - Cruscotto
by
Fuel tank
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
1
Rear splash guard
1B0008830000C
$24,90 Unit Price incl. VAT
2
Splash guard upper closing
1B000881500VV
$33,81 Unit Price incl. VAT
2
Splash guard upper closing
1B000881
$25,82 Unit Price incl. VAT
3
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
4
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Number plate holder
1B003614
Not Available
7
Screw M4x12
015996
$0,08 Unit Price incl. VAT
8
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
9
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
10
Nut M4
020104
$1,26 Unit Price incl. VAT
11
Screw M6x16
272836
$3,70 Unit Price incl. VAT
11
Rear retroreflector
58233R5
$2,60 Unit Price incl. VAT
12
Spacer
479882
$0,67 Unit Price incl. VAT
13
Spring plate
181351
$0,17 Unit Price incl. VAT
14
Splash guard
620236
$17,07 Unit Price incl. VAT
15
Self locking nut M6
288245
$0,16 Unit Price incl. VAT

Find the detailed Rear cover - Splash guard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
