Engine displacement
150
2
Model
946
3
Year
2016
4
Trim
946 ARMANI 150 4T 3V ABS E3
5
Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Stand/s
Flywheel magneto
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
Complete magneto flywheel
680207
Not Available
2
Complete freewheel rotor
B018108
$143,10 Unit Price incl. VAT
3
Stator
680205
$114,49 Unit Price incl. VAT
4
Housing sheet
B018106
$1,35 Unit Price incl. VAT
5
Screw M5x10
018575
$2,95 Unit Price incl. VAT
6
Housing sheet
B018105
$1,77 Unit Price incl. VAT
7
Transmission key
000097
$5,21 Unit Price incl. VAT
8
Nut M16x1,25
841047
$3,78 Unit Price incl. VAT
9
Belleville spring
B018464
$2,35 Unit Price incl. VAT
10
Hex socket screw M5x25
1A003115
$0,34 Unit Price incl. VAT
11
TCCIC M5x16
1A003109
$0,25 Unit Price incl. VAT
11
Screw M5x16
015715
$2,25 Unit Price incl. VAT
12
Fan
1A001379
$14,04 Unit Price incl. VAT
13
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
14
Flanged nut M8x1,25
874557
$0,51 Unit Price incl. VAT
15
Flat washer
B015807
$0,84 Unit Price incl. VAT

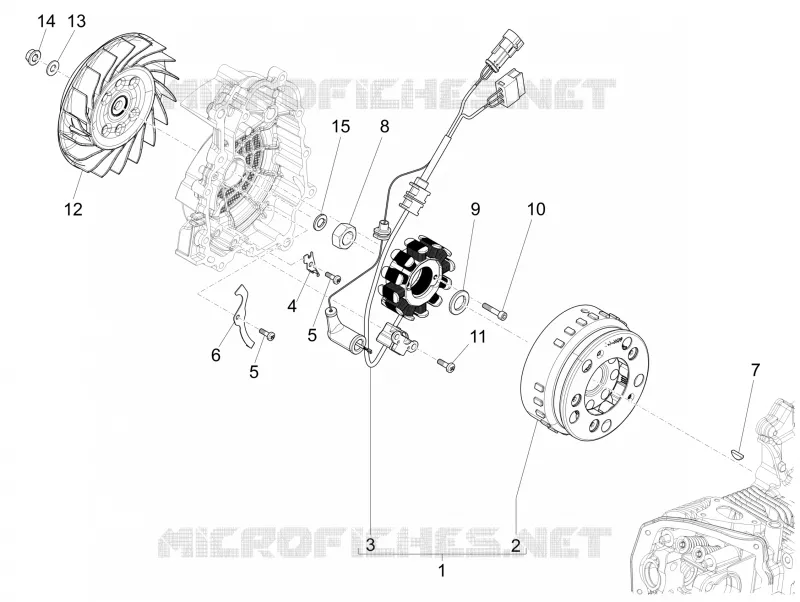

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
