Parts Catalog
Side cover - Spoiler
6

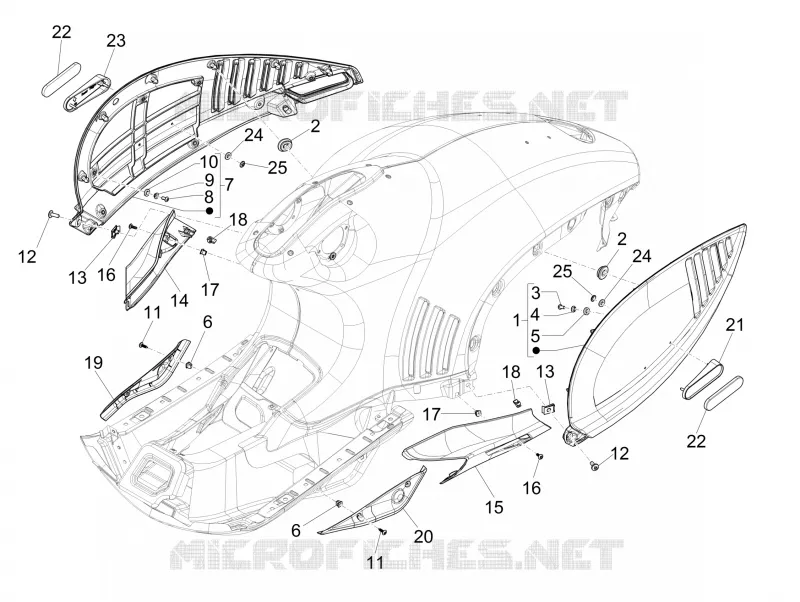

Parts Diagram
Parts Catalog
Central cover - Footrests
by
Front wheel
Side cover - Spoiler
1
2
2
3
4
5
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
16
17
17
18
18
19
20
21
22
22
23
24
24
25
25
1
Complete LH lateral cover panel
1B003230600VR
$886,84 Unit Price incl. VAT
2
Pad
1B000888
$0,25 Unit Price incl. VAT
3
Hex socket screw M5x10
651014
$0,17 Unit Price incl. VAT
4
Bushing
1B000266
$1,43 Unit Price incl. VAT
5
Rubber washer
1B000267
$0,92 Unit Price incl. VAT
6
Expansion plug
199190
$2,95 Unit Price incl. VAT
7
Complete RH lateral cover panel
1B003231600VR
$886,84 Unit Price incl. VAT
8
Hex socket screw M5x10
651014
$0,17 Unit Price incl. VAT
9
Bushing
1B000266
$1,43 Unit Price incl. VAT
10
Rubber washer
1B000267
$0,92 Unit Price incl. VAT
11
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
12
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
13
Spring plate M6
254485
$0,34 Unit Price incl. VAT
14
Right spoiler rear terminal
675513
$11,43 Unit Price incl. VAT
14
Right spoiler rear terminal
67551300VR
$294,03 Unit Price incl. VAT
15
Left spoiler rear terminal
67551200VR
$294,03 Unit Price incl. VAT
15
Left spoiler rear terminal
675512
$11,43 Unit Price incl. VAT
16
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
17
Expansion plug
199190
$2,95 Unit Price incl. VAT
18
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
19
Right spoiler cover
675458
$13,79 Unit Price incl. VAT
20
Left spoiler cover
675457
$13,79 Unit Price incl. VAT
21
LH rear support
1B0024585
$232,70 Unit Price incl. VAT
22
Rear retroreflector
58233R
Not Available
23
RH rear mount
1B0024595
$232,70 Unit Price incl. VAT
24
Spacer
479882
$0,67 Unit Price incl. VAT
25
Spring plate
181351
$0,17 Unit Price incl. VAT
