1
Engine displacement
150
2
Model
946
3
Year
2013
4
Trim
946 150 4T 3V ABS
5
Parts Catalog

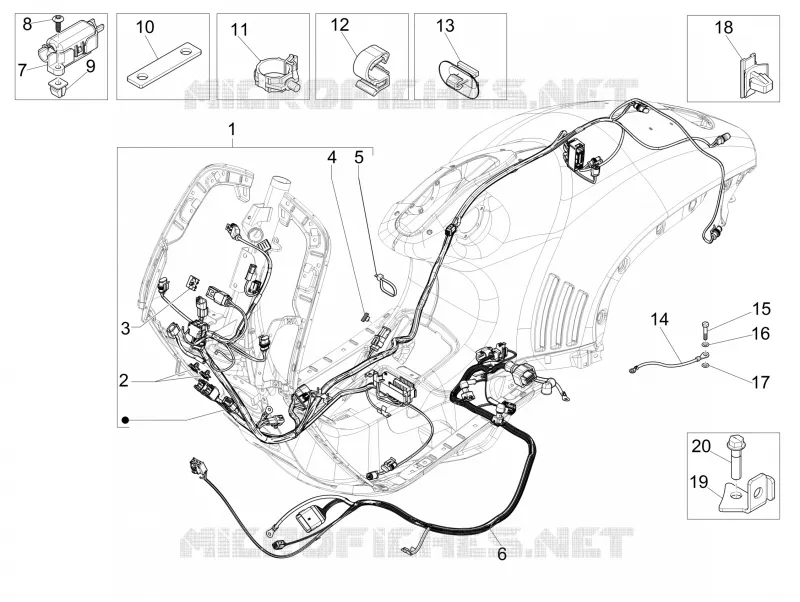

Main cable harness
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Crankcase
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Frame harness
1D000311
$886,84 Unit Price incl. VAT
1
Frame harness
1D000277
$886,84 Unit Price incl. VAT
2
Maintenance
584002
$1,77 Unit Price incl. VAT
3
Spring for connector
641769
$2,27 Unit Price incl. VAT
4
Spring for connector
639560
$0,67 Unit Price incl. VAT
5
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
6
Engine cable harness
1D000059
$305,86 Unit Price incl. VAT
7
Fuse holder
643461
$10,09 Unit Price incl. VAT
8
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
9
Expansion plug
199190
$2,95 Unit Price incl. VAT
10
Switch
643492
$6,89 Unit Price incl. VAT
11
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
11
Non return spring
CM006912
$0,42 Unit Price incl. VAT
11
Non return spring
CM006911
$0,42 Unit Price incl. VAT
12
Spring
CM013201
$0,40 Unit Price incl. VAT
13
Molletta
B005629
$0,84 Unit Price incl. VAT
14
Engine ground lead
1D000144
$5,38 Unit Price incl. VAT
15
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
16
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
17
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
18
Spring for connector
639560
$0,67 Unit Price incl. VAT
19
Support bracket
1D000049
$5,80 Unit Price incl. VAT
20
screw M6x35
414838
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
