Parts Catalog

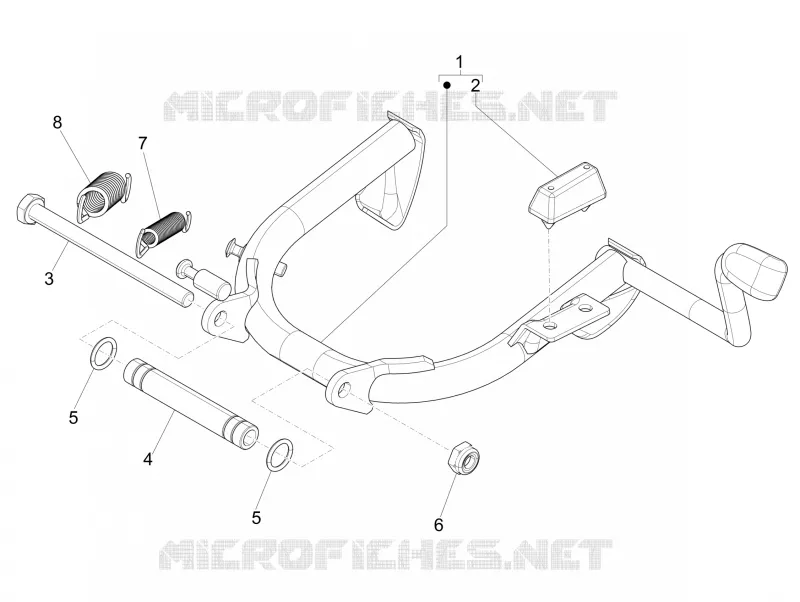

Stand/s
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Reduction unit
Stand/s
1
2
3
4
5
5
6
7
8
1
Complete centre stand
1C000310
$165,18 Unit Price incl. VAT
2
Pad
1C000304
$3,87 Unit Price incl. VAT
3
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
4
Spacer
582298
$3,27 Unit Price incl. VAT
5
O-ring
273754
$0,16 Unit Price incl. VAT
6
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
7
Spring
581248
$2,01 Unit Price incl. VAT
8
Spring
581249
$2,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
