Parts Catalog
Rocking levers support unit
6

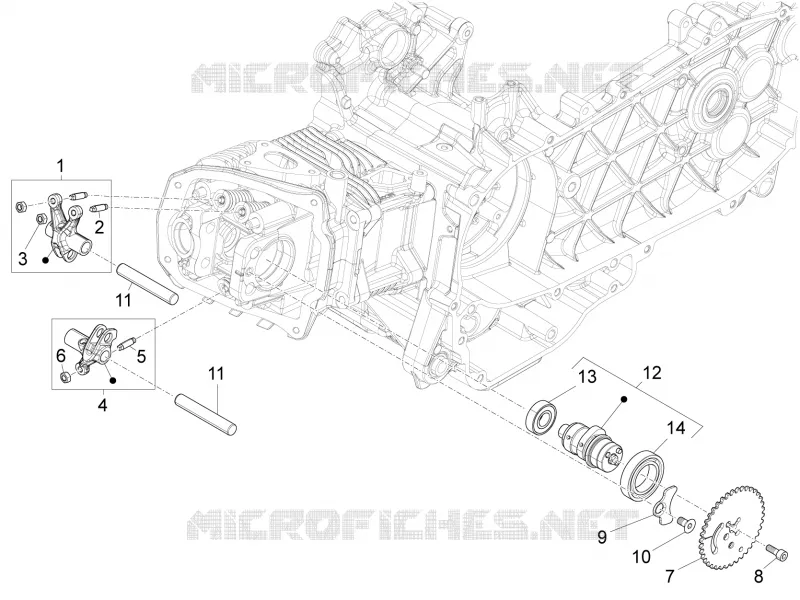

Parts Diagram
Parts Catalog
Driven pulley
by
Transmissions
Rocking levers support unit
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
1
Rocker arm inlet
1A003237R
Not Available
2
Valve adjuster screw
880518
$3,65 Unit Price incl. VAT
3
Rocker arm adjuster nut
880519
$2,95 Unit Price incl. VAT
4
Rocker arm exhaust
1A003238R
Not Available
5
Valve adjuster screw
880518
$3,65 Unit Price incl. VAT
6
Rocker arm adjuster nut
880519
$2,95 Unit Price incl. VAT
7
Timing system gear
B018675
$5,80 Unit Price incl. VAT
8
Screw
B016474
$36,93 Unit Price incl. VAT
9
Camshaft plate
B013836
$1,26 Unit Price incl. VAT
10
TSE screw
1A003919
$0,50 Unit Price incl. VAT
10
Screw
831320
$0,09 Unit Price incl. VAT
11
Rocker arms axis
B014047
$2,35 Unit Price incl. VAT
12
Camshaft cpl.
1A0035075
$149,09 Unit Price incl. VAT
12
Camshaft
B0154135
Not Available
13
Radial bearing 12X28X8
83029R
$2,77 Unit Price incl. VAT
14
Radial bearing 25x42x9
83030R
$6,56 Unit Price incl. VAT
