Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Stand/s
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Reduction unit
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
1
Reducer cover with i.p.
B0160435
$137,02 Unit Price incl. VAT
2
Bearing 30.55.13
1A005376R
$14,12 Unit Price incl. VAT
2
Radial bearing 30x55x13
83034R
Not Available
3
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
4
Gasket ring 38x50x7
B015440
$7,15 Unit Price incl. VAT
5
Circlip
829206
$0,67 Unit Price incl. VAT
6
Flanged hexagon head screw M8x50
1A001623
$2,76 Unit Price incl. VAT
7
Screw w/ flange M8x35
1A000769
$2,35 Unit Price incl. VAT
8
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
CM162202
$24,21 Unit Price incl. VAT
9
Reduction unit breather pipe assembly
B018670
$10,00 Unit Price incl. VAT
10
Driven pulley shaft Z=15
B0169605
Not Available
11
Transmission shaft
B0172395
Not Available
12
Rear wheel axle with U.P.
B0172405
Not Available
13
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
14
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
15
Reduction unit cover gasket
B016456
$3,11 Unit Price incl. VAT
16
Hose clamp
1A000482
$4,29 Unit Price incl. VAT

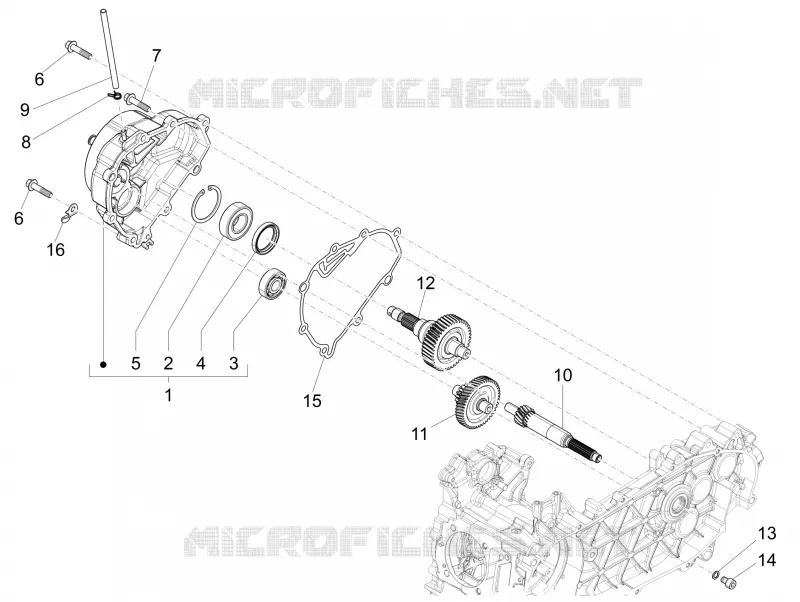

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
