1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Cylinder-piston-wrist pin, assy
6

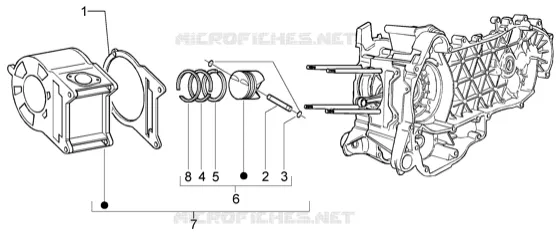

Parts Diagram
Parts Catalog
Rear wheel
by
Head-valves
Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
829529
$8,12 Unit Price incl. VAT
3
Snap ring
963486
$0,05 Unit Price incl. VAT
4
Piston rings unit
843228
$65,00 Unit Price incl. VAT
4
Scraper ring 72x1
484908
$24,09 Unit Price incl. VAT
5
Piston rings unit
843228
$65,00 Unit Price incl. VAT
5
Scraper ring 72x2,5
486363
$25,62 Unit Price incl. VAT
6
Piston assy cat4
8432900004
Not Available
6
Piston-wrist pin assy.
8300530004
$225,45 Unit Price incl. VAT
6
Piston-wrist pin assy.
8300530002
Not Available
6
Piston-wrist pin assy.
8300530001
$225,45 Unit Price incl. VAT
6
Piston assy
8432900001
Not Available
6
Piston-wrist pin assy.
8300530003
Not Available
6
Piston assy cat3
8432900003
Not Available
6
Piston assy cat2
8432900002
$77,82 Unit Price incl. VAT
7
Cylinder, assy.
830052
Not Available
7
Cylinder with piston
843291
Not Available
8
Piston rings unit
843228
$65,00 Unit Price incl. VAT
8
Ring 72x1.5
830486
$34,62 Unit Price incl. VAT
8
Piston ring
830485
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
