1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2004
4
Trim
Granturismo L
5
Parts Catalog
Front and rear mudguard
6

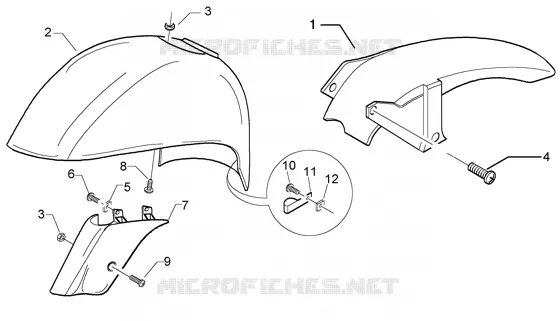

Parts Diagram
Parts Catalog
Splash guard
by
Tank
Front and rear mudguard
1
2
3
3
4
5
6
7
8
9
10
11
12
1
Rear mudguard
621145
Not Available
1
Rear mudguard
577858
Not Available
2
Front mudguard
60057900F2
Not Available
2
Front mudguard
60057900BM
Not Available
2
Mudguard
59836700A7
Not Available
2
Front mudguard
60057900VC
Not Available
2
Mudguard
59836700D9
Not Available
2
Mudguard
5983670018
Not Available
2
Front mudguard
60057900EB
Not Available
2
Front mudguard
60057900D9
Not Available
2
Mudguard
59836700BG
Not Available
2
Mudguard
59836700F2
Not Available
2
Mudguard
59836700D8
Not Available
2
Mudguard
59836700VC
Not Available
2
Mudguard
59836700EB
Not Available
2
Mudguard
5983670090
Not Available
2
Front mudguard
60057900ND
Not Available
3
Nut
969224
$0,42 Unit Price incl. VAT
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Spring plate
CM017410
$0,34 Unit Price incl. VAT
6
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
7
Front suspension cover
5986150090
$54,27 Unit Price incl. VAT
7
Tyre
59861500BG
Not Available
7
Tyre
59861500D8
Not Available
7
Tyre
59861500D9
$54,27 Unit Price incl. VAT
7
Tyre
5986150018
Not Available
7
Tyre
59861500A7
Not Available
7
Tyre
59861500VC
Not Available
7
Front suspension cover
59861500F2
$54,27 Unit Price incl. VAT
7
Tyre
59861500EB
$54,27 Unit Price incl. VAT
8
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
9
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
10
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
11
Hose clamp
271477
$3,65 Unit Price incl. VAT
12
Spring plate
CM017410
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
