1
Engine displacement
50
2
Model
RCR
3
Year
2018
4
Trim
RCR 50 E4
5
Parts Catalog
Central electrical system
6
Parts Diagram
Parts Catalog
Cooling system
by
Front lights

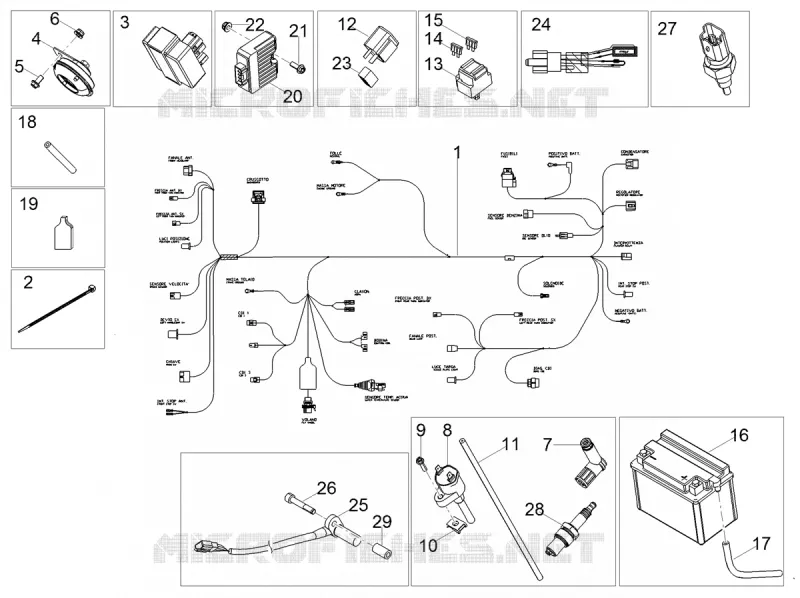

Central electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Main wiring harness
2D000393
Not Available
2
Hose clamp 4.5X280
AP8120657
$0,34 Unit Price incl. VAT
2
Black hose 2.5X99
AP8120422
$3,70 Unit Price incl. VAT
2
Black hose 178x4
AP8120416
$5,38 Unit Price incl. VAT
3
Electronic ignition
CM287903
$518,52 Unit Price incl. VAT
4
Horn
00H01005311
Not Available
5
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
6
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
7
Sparkplug cap
GU03717450
$14,18 Unit Price incl. VAT
8
Coil
CM255206
$20,47 Unit Price incl. VAT
9
Screw w/ flange M5x20
AP8152274
$0,08 Unit Price incl. VAT
10
Clip M5
00G04401462
$1,10 Unit Price incl. VAT
11
H.V. cable
080341
$5,89 Unit Price incl. VAT
12
Turn indicator control
1D002308
$3,95 Unit Price incl. VAT
13
Rubber fuse box
AP8112811
$6,40 Unit Price incl. VAT
14
Fuse 15A
CM225715
$7,23 Unit Price incl. VAT
15
Fuse 7,5A
CM225707
$7,23 Unit Price incl. VAT
16
BATTERIA PTX4L-BS (12V 3Ah)
1L004081
$40,15 Unit Price incl. VAT
16
BATTERIA PB4L-B SENZA ACIDO (12V 4Ah)
1L004080
$37,08 Unit Price incl. VAT
16
BATTERIA PB4L-B SENZA ACIDO (12V 4Ah)
1L004079
$38,93 Unit Price incl. VAT
16
Battery 12V-4Ah
234390
$79,65 Unit Price incl. VAT
17
pipe 4x8
AP8220263
Not Available
18
Sheath
AP8201772
$5,38 Unit Price incl. VAT
19
Guard
00H02300961
Not Available
20
Voltage regulator (Langfang Kokusan)
641788
$113,03 Unit Price incl. VAT
21
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
22
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
23
Device bracket
642317
$0,50 Unit Price incl. VAT
24
Diode-condenser cable
2D000395
$30,88 Unit Price incl. VAT
25
Speed sensor
863307
Not Available
26
Pre-coated IX M6X35 SHC screw
2B002195
$0,59 Unit Price incl. VAT
27
Temperature gauge
640485
Not Available
28
RESISTANCE ignition spark plug
485704
Not Available
29
Spacer bush
863745
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
