1
Engine displacement
50
2
Model
RCR
3
Year
2018
4
Trim
RCR 50 E4
5
Parts Catalog
Carburettor
6

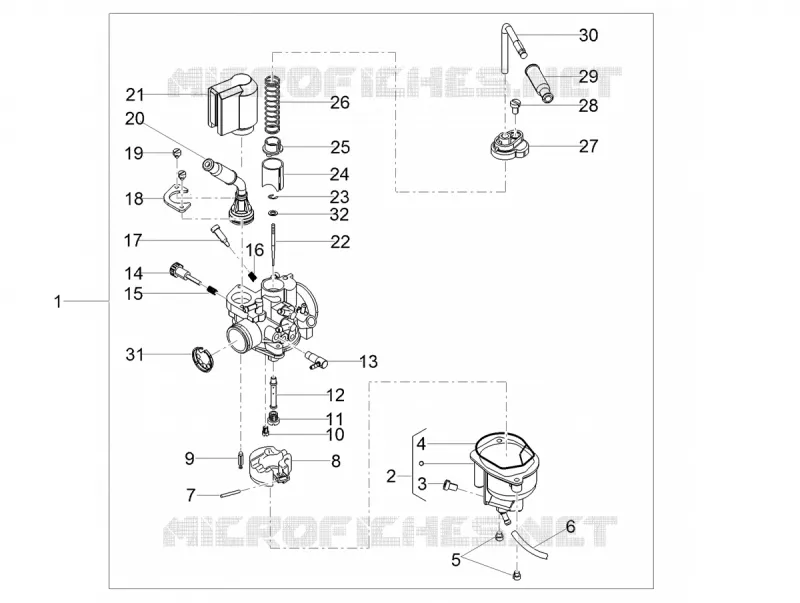

Parts Diagram
Parts Catalog
Carburettor
by
Head cover
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Carburetor assembly
CM290001
Not Available
2
Complete reservoir
1A011315
$25,46 Unit Price incl. VAT
3
screw
432456
$2,40 Unit Price incl. VAT
4
Float chamber gasket
485519
$2,13 Unit Price incl. VAT
5
Float chamber fixing screw
288862
$0,62 Unit Price incl. VAT
6
Reservoir pipe
CM112003
$4,73 Unit Price incl. VAT
7
Float pin
288881
$0,97 Unit Price incl. VAT
8
Float
288882
$6,69 Unit Price incl. VAT
9
Fuel closing needle
CM128502
$17,69 Unit Price incl. VAT
10
Idle jet 30
CM102101
$2,84 Unit Price incl. VAT
11
Main jet 68
CM101719
$5,67 Unit Price incl. VAT
12
Diffuser 209 HA
CM106230
$4,98 Unit Price incl. VAT
13
Complete oil valve
436206
$8,68 Unit Price incl. VAT
14
Gas valve adjuster screw
828074
$3,21 Unit Price incl. VAT
15
Spring
152608
$0,63 Unit Price incl. VAT
16
Spring
085285
$4,82 Unit Price incl. VAT
17
Air adjuster screw
CM107701
$6,60 Unit Price incl. VAT
18
Plate
288863
$1,10 Unit Price incl. VAT
19
screw
289575
$0,68 Unit Price incl. VAT
20
Starter
CM146204
$23,38 Unit Price incl. VAT
21
Guard
485671
$5,35 Unit Price incl. VAT
22
Conical pin
CM107514
$11,34 Unit Price incl. VAT
23
Ring
288872
$0,62 Unit Price incl. VAT
24
Gas valve
CM141711
$7,83 Unit Price incl. VAT
25
Conical pin clip
288873
$1,20 Unit Price incl. VAT
26
Gas valve spring
482942
$0,87 Unit Price incl. VAT
27
Gas valve cover
431654
$3,25 Unit Price incl. VAT
28
screw
288865
$0,33 Unit Price incl. VAT
29
Cap
875551
$3,68 Unit Price incl. VAT
30
Baffle tube
113903
$4,32 Unit Price incl. VAT
31
Air gauger
827892
$2,52 Unit Price incl. VAT
32
Washer
CM295501
$1,10 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
